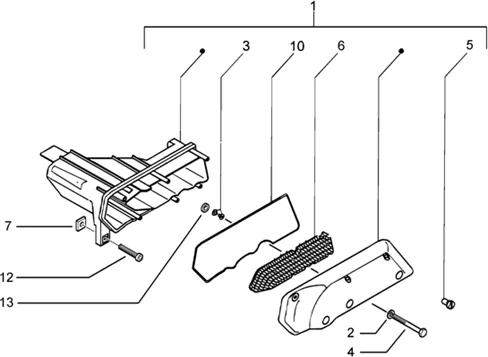

Vehicle Exploded View - GILERA RUNNER 50 Purejet 1998-2005 GILERA

Châssis : T21 FILTRE À AIR
Filtre à air
Search
AIR FILTER HOUSING "PIAGGIO GENUINE PART" 50 TYPHOON, NRG 1998>2004, NRG INJECTION 2005/GILERA 50 STALKER, RUNNER 1998>2004, RUNNER INJECTION 2005> -845662-

1
P2R reference P2R reference 93021
Maker reference Maker reference 845662

AIR FILTER HOUSING "PIAGGIO GENUINE PART" 50 TYPHOON, NRG 1998>2004, NRG INJECTION 2005/GILERA 50 STALKER, RUNNER 1998>2004, RUNNER INJECTION 2005> -845662-

More information

Quantity required : 1
003056 - RONDELLE

2
P2R reference P2R reference 63777
Maker reference Maker reference 0030565

003056 - RONDELLE

More information

Quantity required : 2
830056 - BAGUE

3
P2R reference P2R reference 68888
Maker reference Maker reference 830056

830056 - BAGUE

More information

Quantity required : 4
SCREW - (6X50 AIR FILTER FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -018640-

4
P2R reference P2R reference 65448
Maker reference Maker reference 0186405

SCREW - (6X50 AIR FILTER FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -018640-

More information

Quantity required : 2
SCREW - 3x20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146-

5
P2R reference P2R reference 66025
Maker reference Maker reference 258146

SCREW - 3X20 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -258146-

More information

Quantity required : 6
AIR FILTER"PIAGGIO GENUINE PART" PREMIUM PIAGGIO 50 NRG 1998>2005, NRG INJECTION, TYPHOON 1998>2003/GILERA 50 STALKER 1998>2005, RUNNER 1998>2005, RUNNER INJECTION 2005>2011 -4797480P-

6
P2R reference P2R reference 157084
Maker reference Maker reference 4797480P

AIR FILTER"PIAGGIO GENUINE PART" PREMIUM PIAGGIO 50 NRG 1998>2005, NRG INJECTION, TYPHOON 1998>2003/GILERA 50 STALKER 1998>2005, RUNNER 1998>2005, RUNNER INJECTION 2005>2011 -4797480P-

More information

Quantity required : 1
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

7
P2R reference P2R reference 66009
Maker reference Maker reference 254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

More information

Quantity required : 2
479749 - JOINT

10
P2R reference P2R reference 78921
Maker reference Maker reference 479749

479749 - JOINT

More information

Quantity required : 1
SCREW - FOR AIR BOX 6x20 "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50CC 2 stroke -015759-

12
P2R reference P2R reference 65392
Maker reference Maker reference 0157595

SCREW - FOR AIR BOX 6X20 "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50CC 2 STROKE -015759-

More information

Quantity required : 1
012533 - RONDELLE

13
P2R reference P2R reference 65345
Maker reference Maker reference 0125335

012533 - RONDELLE

More information

Quantity required : 2
