Vehicle Exploded View - GILERA RUNNER 50 Purejet 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

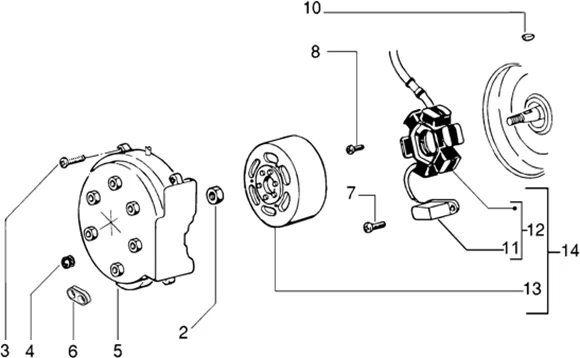

Moteur : T12 VOLANT MAGNETIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/656/Runner_50_Purejet_1998-2005_T12.PNG)
1 |
58062R - VOLANT MAGNETIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/1/0/img/66210.jpg)
2 |
NUT - FOR IGNITION FLYWHEEL "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 4 STROKE -289005- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
3 |
SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/8/9/img/68689.JPG)
4 |
827712 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/3/2/img/68632.jpg)
5 |
826972 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/8/4/img/68684.jpg)
6 |
827685 - PASSE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/6/7/img/127167.JPG)
7 |
1A003109 - VIS M5X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/5/img/65385.jpg)
8 |
015597 - VIS S01559700 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/2/1/img/63721.jpg)
10 |
WOODRUFF KEY "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -000267- More informationQuantity required : 1 |
||||||
|
11 |
831443 - CAPTEUR More informationQuantity required : 1 |
||||||
|
12 |
638610 - STATOR More informationQuantity required : 1 |
||||||
|
13 |
638611 - ROTOR More informationQuantity required : 1 |
