Vehicle Exploded View - GILERA RUNNER 125 VX 4T SC
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

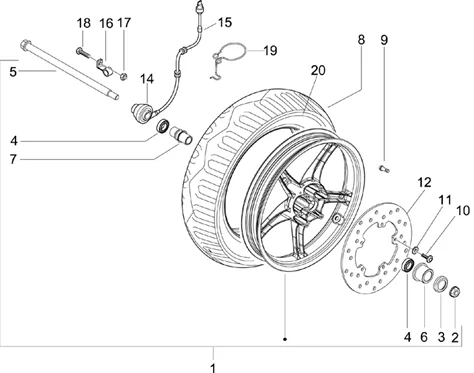

Suspensions - roues : 04.11 ROUE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/195/Runner_125_VX_4T_SC_04.11.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/3/img/66103.jpg)
2 |
NUT - FOR WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -271740- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/0/5/7/img/67057.JPG)
3 |
564475 - RONDELLE D'AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
4 |
FRONT WHEEL BEARING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -649910- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/1/3/img/70913.JPG)
5 |
959376 - AXE ROUE More informationQuantity required : 1 |
||||||
7 |
959378 - ENTROISE More informationQuantity required : 1 |
||||||
|
8 |
949602 - PNEUS 120/70-14" 55P SAVA More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/4/img/66094.jpg)
9 |
270991 - VALVE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/3/6/img/68436.jpg)
10 |
BRAKE DISC SCREW (6X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -667152- More informationQuantity required : 6 |
||||||
|
11 |
274706 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/3/6/3/img/140363.jpg)
12 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" 125-250-300-400-500 MP3/GILERA 125 RUNNER, 500 FUOCO -56394R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/7/0/6/3/img/87063.jpg)
14 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50-125 GILERA RUNNER -650308- More informationQuantity required : 1 |
||||||
|
16 |
179013 - RESSORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/0/9/6/img/149096.jpg)
17 |
241936 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/2/0/img/72720.jpg)
18 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774- More informationQuantity required : 1 |
||||||
|
18 |
SCREW - M6X25 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -B016774- More informationQuantity required : 1 |
||||||
|
19 |
639426 - COLLIER More informationQuantity required : 1 |
