Vehicle Exploded View - GILERA RUNNER 125 VX 4T SC
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

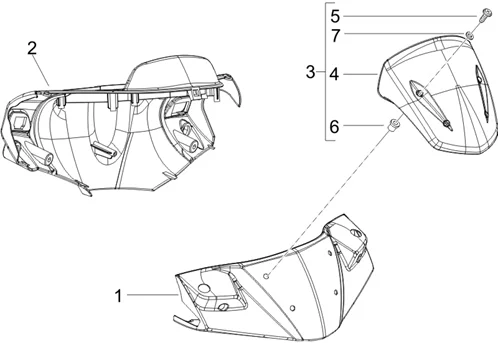

Guidon/direction : 03.01 COUVERTURES GUIDON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/195/Runner_125_VX_4T_SC_03.01.PNG)
1 |
94944100R7 - COUVRE GUIDON AV RUNNER RST More informationQuantity required : 1 |
||||||
|
2 |
959347000C - CACHE DIRECTION ARR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/4/7/1/img/88471.jpg)
3 |
WIND SHIELD "PIAGGIO GENUINE PART" 125 CARNABI/GILERA 125 RUNNER -654800- More informationQuantity required : 1 |
||||||
|
4 |
WIND SHIELD "PIAGGIO GENUINE PART" 125 CARNABI/GILERA 125 RUNNER -654800- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/5/1/6/img/81516.jpg)
5 |
581175 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/0/4/img/67204.jpg)
6 |
BUSH FOR WIND SHIELD "PIAGGIO GENUINE PART" 50 NRG, TYPHOON 2005>, 300 YOURBAN/GILERA 50 RUNNER 2005> -581174- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/1/4/img/110214.jpg)
7 |
567602 - RONDELLE More informationQuantity required : 2 |
