Vehicle Exploded View - GILERA RUNNER 125 VX 4T SC
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

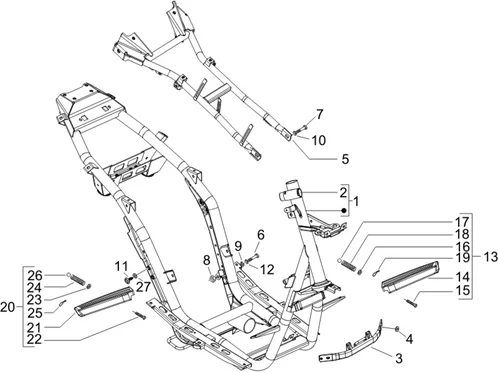

Châssis - parties plastiques - carrosseries : 02.01 CHÂSSIS/COQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/195/Runner_125_VX_4T_SC_02.01.PNG)
1 |
6242885 - CHASSIS RUNNER RST More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/6/img/66306.jpg)
2 |
LOCK SUPPORT "PIAGGIO GENUINE PART" 125 X7, X8, X9, X-EVO, GTS, LX, FLY, BEVERLY/GILERA 125 RUNNER/APRILIA 50 SR MOTARD -298604- More informationQuantity required : 1 |
|||||||||
|
5 |
6241125 - CHASSIS More informationQuantity required : 1 |
|||||||||
|
6 |
015643 - BOULON S01564300 More informationQuantity required : 1 |
|||||||||
|
7 |
598920 - BOULON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
8 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
9 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
10 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187- More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/5/5/img/67255.jpg)
11 |
582428 - VIS More informationQuantity required : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
12 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 1 |
|||||||||
|
13 |
949526 - REPOSE PIED GAUCHE More informationQuantity required : 1 |
|||||||||
|
14 |
654131000C - REPOSE PIED More informationQuantity required : 1 |
|||||||||
|
16 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/8/3/img/66283.jpg)
17 |
295591 - BILLE More informationQuantity required : 1 |
|||||||||
|
17 |
2955916 - BILLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/6/2/5/6/1/img/162561.jpg)
18 |
2955909 - RESSORT More informationQuantity required : 1 |
|||||||||
|
18 |
2955909 - RESSORT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/4/5/img/66045.jpg)
19 |
259933 - RESSORT More informationQuantity required : 1 |
|||||||||
|
20 |
949527 - REPOSE PIED DROIT More informationQuantity required : 1 |
|||||||||
|
23 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
|||||||||
|
24 |
2955909 - RESSORT More informationQuantity required : 1 |
|||||||||
|
24 |
2955909 - RESSORT More informationQuantity required : 1 |
|||||||||
|
25 |
259933 - RESSORT More informationQuantity required : 1 |
|||||||||
|
26 |
295591 - BILLE More informationQuantity required : 1 |
|||||||||
|
26 |
2955916 - BILLE More informationQuantity required : 1 |
|||||||||
