Vehicle Exploded View - APRILIA RSV4 1000 RR 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

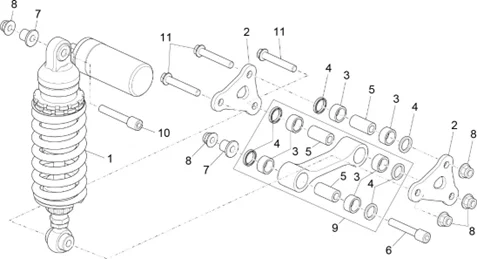

Suspensions : 4080 AMORTISSEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/563/RSV4_1000_RR_2015_4080.png)
1 |
2B001399 - AMORTISSEUR ARRIERE More informationQuantity required : 1 |
||||||
|
2 |
858918 - DOUBLE BIELLETTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/2/3/img/45823.jpg)
3 |
ROLLER BEARING FOR SUSPENSION ARM "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, RSV-4, TUONO, FUTURA, 125 RX, SX -AP8110065- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/0/img/71270.JPG)
4 |
AP8110068 - JOINT SPI More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/0/3/0/img/50030.JPG)
5 |
AP8146518 - SPINOTTO L=36 More informationQuantity required : 3 |
||||||
|
6 |
AP8152412 - VITE TCEI M10 X 72 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/9/img/71439.jpg)
7 |
AP8121155 - "DOUILLE EN ""T""" More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
8 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 5 |
||||||
|
9 |
AP81465164 - BIELLE SIMPLE COMPLETE More informationQuantity required : 1 |
||||||
|
10 |
AP8152411 - VITE TCEI M10 X 59 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/1/0/0/6/img/51006.JPG)
11 |
AP8152413 - VIS BRIDE More informationQuantity required : 3 |
