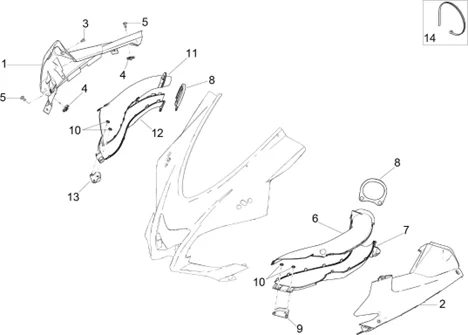

Vehicle Exploded View - APRILIA RSV4 1000 RR 2015 APRILIA

Carrosserie : 2070 CONVOYEUR
Convoyeur
Search
2B001540000XN6 - FERM.CARENE S.D.P.N.

1
P2R reference P2R reference 37845
Maker reference Maker reference 2B001540000XN6

2B001540000XN6 - FERM.CARENE S.D.P.N.

More information

Quantity required : 1
2B001541000XN6 - FERM.CARENE S.D.P.N.

2
P2R reference P2R reference 37846
Maker reference Maker reference 2B001541000XN6

2B001541000XN6 - FERM.CARENE S.D.P.N.

More information

Quantity required : 1
AP8150444 - VIS TARAUD POUR PLAST. INOX

3
P2R reference P2R reference 71887
Maker reference Maker reference AP8150444

AP8150444 - VIS TARAUD POUR PLAST. INOX

More information

Quantity required : 2
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

4
P2R reference P2R reference 71174
Maker reference Maker reference AP8102375

CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375-

More information

Quantity required : 6
SCREW - FOR FAIRINGS FASTENING (5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA + MOTO-GUZZI V7-V9 -896174-

5
P2R reference P2R reference 70837
Maker reference Maker reference 896174

SCREW - FOR FAIRINGS FASTENING (5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA + MOTO-GUZZI V7-V9 -896174-

More information

Quantity required : 6
AIR DUCT - UPPER LEFT "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4 -2B001921-

6
P2R reference P2R reference 108670
Maker reference Maker reference 2B001921

AIR DUCT - UPPER LEFT "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4 -2B001921-

More information

Quantity required : 1
2B006425 - AIR DUCT

7
P2R reference P2R reference 161318
Maker reference Maker reference 2B006425

2B006425 - AIR DUCT

More information

Quantity required : 1
858819 - JOINT

8
P2R reference P2R reference 40567
Maker reference Maker reference 858819

858819 - JOINT

More information

Quantity required : 2
858926 - SUPPORT

9
P2R reference P2R reference 40651
Maker reference Maker reference 858926

858926 - SUPPORT

More information

Quantity required : 1
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450-

10
P2R reference P2R reference 71888
Maker reference Maker reference AP8150450

WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450-

More information

Quantity required : 4
2B001922 - CONDUITE DRT

11
P2R reference P2R reference 108671
Maker reference Maker reference 2B001922

2B001922 - CONDUITE DRT

More information

Quantity required : 1
AIR DUCT - LOWER RIGHT "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4 -858907-

12
P2R reference P2R reference 40643
Maker reference Maker reference 858907

AIR DUCT - LOWER RIGHT "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4 -858907-

More information

Quantity required : 1
858925 - SUPPORT CONDUITE

13
P2R reference P2R reference 40650
Maker reference Maker reference 858925

858925 - SUPPORT CONDUITE

More information

Quantity required : 1
AP8120422 - COLLIER, NOIR

14
P2R reference P2R reference 71395
Maker reference Maker reference AP8120422

AP8120422 - COLLIER, NOIR

More information

Quantity required : 2
