Vehicle Exploded View - APRILIA RSV4 1000 RR 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

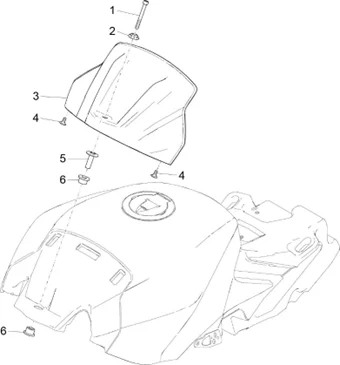

Carrosserie : 2090 COUVRE RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/563/RSV4_1000_RR_2015_2090.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/5/img/71875.jpg)
1 |
AP8150403 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/0/2/img/71902.JPG)
2 |
AP8150536 - ROSETTA SPECIALE More informationQuantity required : 1 |
||||||
3 |
B04454700EQ - COUVERCLE More informationQuantity required : 1 |
||||||
|
3 |
B04454700XN6 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/7/3/img/71973.jpg)
4 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8152339- More informationQuantity required : 2 |
||||||
|
5 |
B044548 - DOUILLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/5/1/img/71151.jpg)
6 |
AP8101372 - SILENTBLOC More informationQuantity required : 2 |
