Vehicle Exploded View - APRILIA RSV4 1000 Racing Factory LE 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

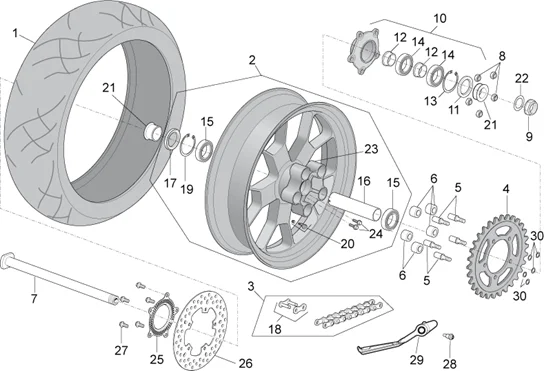

Roues : 05.020 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/562/RSV4_1000_Racing_Factory_LE_2015_05.020.PNG)
1 |
897367 - PNEU ARRIERE More informationQuantity required : 1 |
|||||||||
|
2 |
2B011685 - ROUE ARRIERE More informationQuantity required : 1 |
|||||||||
|
2 |
2B002033 - ROUE ARRIERE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/4/6/9/img/42469.jpg)
3 |
CHAIN WITH CONNECTING LINK "PIAGGIO GENUINE PART" APRILIA 1000-1100 RSV-4, TUONO V4 -896358- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/0/1/img/109001.JPG)
4 |
CM224906 - COURONNE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/5/3/img/72853.jpg)
5 |
REAR CHAIN SPROCKET PIN "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO, 1200 CAPONORD, DORSODURO, 750 SHIVER, 850 SRV -B045033- More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/0/5/img/72805.jpg)
6 |
SILENTBLOC FOR REAR CHAIN SPROCKET "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO, 1200 CAPONORD, DORSODURO, 750 SHIVER, 850 SRV -B043317- More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/2/2/2/img/139222.JPG)
7 |
8587315 - AXE DE ROUE AR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/5/img/71885.jpg)
8 |
NUT - FRAME FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA +MOTO-GUZZI -AP8150436- More informationQuantity required : 5 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/8/img/71968.jpg)
9 |
NUT - FOR REAR WHEEL "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -AP8152324- More informationQuantity required : 1 |
|||||||||
|
10 |
AP81257305 - PORTE-COURONNE CPL. More informationQuantity required : 1 |
|||||||||
|
11 |
AP8121213 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
|||||||||
|
12 |
AP8125732 - ENTRETOISE JOINT ELAST. More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/9/img/46749.JPG)
13 |
AP8121212 - BAGUE SEEGER POUR ORIFICE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/3/1/img/45831.JPG)
14 |
AP8110081 - ROULEMENT More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/7/2/img/71272.jpg)
15 |
REAR WHEEL BEARING (25X52X15 - 6205)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -AP8110093- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/3/5/3/1/img/53531.jpg)
16 |
SPACER- FOR REAR WHEEL "PIAGGIO GENUINE PART" APRILIA 1000 RSV, TUONO -AP8176101- More informationQuantity required : 1 |
|||||||||
|
17 |
AP8125838 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/6/6/7/img/40667.JPG)
18 |
859754 - MAILLON DE JONCTION More informationQuantity required : 1 |
|||||||||
|
19 |
AP8125839 - ANNEAU ELASTIQUE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/7/img/71237.JPG)
20 |
AP8104728 - VALVOLA TUBELESS More informationQuantity required : 1 |
|||||||||
|
21 |
AP8121592 - DISTANZIALE RUOTA POST. More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/7/img/71967.jpg)
22 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA -AP8152323- More informationQuantity required : 1 |
|||||||||
|
23 |
893639 - BRIDE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/5/img/70535.jpg)
24 |
874555 - VIS More informationQuantity required : 10 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/0/6/img/70806.JPG)
25 |
PHONIC WHEEL - REAR ABS "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, 1100 RSV-4, TUONO V4 -890960- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/9/5/7/5/img/39575.jpg)
26 |
REAR BRAKE DISC "PIAGGIO GENUINE PART" APRILIA 1000 RSV-4, TUONO V4 -85248R- More informationQuantity required : 1 |
|||||||||
|
27 |
894505 - VIS BRIDE More informationQuantity required : 5 |
|||||||||
|
28 |
2B001932 - ENTRETOISE More informationQuantity required : 1 |
|||||||||
|
29 |
2B001909 - PATIN More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/1/img/71811.jpg)
30 |
AP8150020 - RONDELLE More informationQuantity required : 5 |
|||||||||
