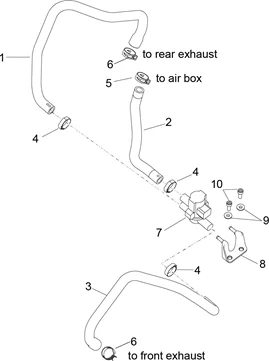

Moteur : 03.320 AIR SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/562/RSV4_1000_Racing_Factory_LE_2015_03.320.PNG)
1 |
856631 - TUYAU A AIR More informationQuantity required : 1 |
||||||
|
2 |
856632 - TUYAU A AIR More informationQuantity required : 1 |
||||||
|
3 |
856630 - TUYAU A AIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
4 |
CM001905 - COLLIER More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/7/img/72897.jpg)
5 |
CM002916 - SERRE CABLE (15MM) More informationQuantity required : 1 |
||||||
|
6 |
CM225401 - COLLIER SERR. TUBE More informationQuantity required : 2 |
||||||
|
7 |
857181 - SOUPAPE AIR More informationQuantity required : 1 |
||||||
|
8 |
858727 - PATTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/9/img/71429.jpg)
9 |
AP8121032 - DOUILLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/4/img/71824.jpg)
10 |
SCREW - (6X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE + MAXISCOOTER APRILIA -AP8150137- More informationQuantity required : 2 |
