Vehicle Exploded View - APRILIA RSV4 1000 Racing Factory LE 2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

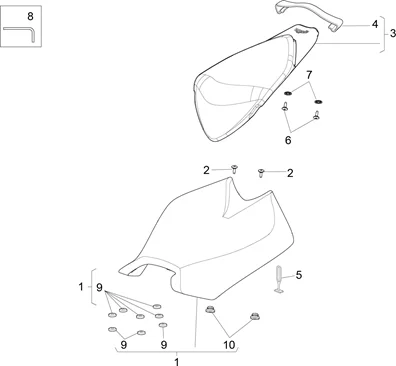

Carrosserie : 02.120 SELLE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/562/RSV4_1000_Racing_Factory_LE_2015_02.120.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/5/8/7/img/40587.jpg)
1 |
85883200A1 - SELLE PILOTE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/1/img/71961.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152302- More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/5/0/img/108950.JPG)
3 |
85884300A1 - SELLE PASSAGER More informationQuantity required : 1 |
|||||||||
|
3 |
85884300A1 - SELLE PASSAGER More informationQuantity required : 1 |
|||||||||
4 |
85884400A1 - COURROIE PASSAGER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/6/img/71386.JPG)
5 |
AP8120177 - ELASTIQUE SUPPORT FEU More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
6 |
AP8152279 - VIS BRIDE More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/2/img/71872.jpg)
7 |
AP8150378 - RONDELLE More informationQuantity required : 2 |
|||||||||
|
8 |
894195 - TOOLS KEY More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/1/9/1/img/62191.JPG)
9 |
B043933 - TAMPON More informationQuantity required : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/1/4/6/img/127146.jpg)
10 |
B043941 - TAMPON More informationQuantity required : 2 |
|||||||||
