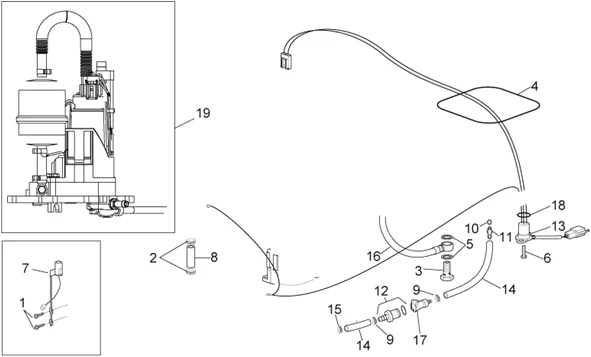

Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Chassis : 28.42 POMPE ESSENCE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/315/RSV_1000_2003_28.42.PNG)
2 |
890435 - COLLIER More informationQuantity required : 2 |
||||||
|
3 |
AP8106443 - VIS PERCEE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/3/5/0/8/img/53508.jpg)
4 |
GASKET FOR FUEL GAUGE COVER "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO, RST FUTURA -AP8176032- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/5/3/4/img/45534.jpg)
5 |
GASKET FOR FUEL PUMP HOSE (18X12,2X1,5) "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, TUONO V2, FALCO, FUTURA -AP8106444- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
6 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
|
7 |
AP8127540 - SENSORE LIVELLO More informationQuantity required : 1 |
||||||
|
8 |
AP8144476 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/9/7/img/71197.jpg)
9 |
AP8102764 - COLLIER CLIC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/2/img/50962.jpg)
10 |
AP8152184 - RONDELLE More informationQuantity required : 2 |
||||||
|
11 |
AP8102626 - RACCORD A DEUX VOIES More informationQuantity required : 1 |
||||||
|
12 |
AP8102873 - RACCORD; More informationQuantity required : 1 |
||||||
|
13 |
AP8127321 - CABLAGE POMPE ESSENCE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/4/4/img/71744.jpg)
14 |
FUEL HOSE (6X13) "PIAGGIO GENUINE PART" APRILIA 1000 CAPONORD 2001>2007, FUTURA, RSV-2 1998>2008, TUONO V2 2002>2009/MOTO-GUZZI 750-1100 BREVA 2003>2009,1100 GRISO 2005>2008 -AP8144069- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/1/img/71171.jpg)
15 |
AP8102239 - COLLIER CLIC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/0/1/5/img/40015.jpg)
16 |
FUEL DISCHARGE PIPE "PIAGGIO GENUINE PARTS" APRILIA 1000 RSV-2 1998>2008, TUONO V2 2002>2009, FALCO 2000>2003 -856075- More informationQuantity required : 1 |
||||||
|
17 |
AP8102829 - RACCORD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/7/4/0/img/49740.jpg)
18 |
AP8144475 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
|
19 |
AP8106881 - POMPE ESSENCE CPL. More informationQuantity required : 1 |
||||||
|
19 |
AP8176078 - KIT POMPA BENZINA More informationQuantity required : 1 |
