Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

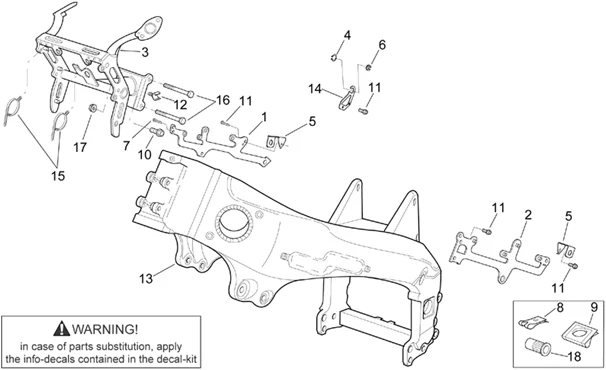

Chassis : 28.10 CHASSIS II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/315/RSV_1000_2003_28.10.PNG)
1 |
AP8134389 - SUPPORT DR BOBINES; More informationQuantity required : 1 |
||||||
|
2 |
AP8134635 - SUPPORT G. BOBINES; More informationQuantity required : 1 |
||||||
|
3 |
AP8135905 - CHASSIS PORTE-INSTR.; More informationQuantity required : 1 |
||||||
|
4 |
AP8121428 - BAGUE SEEGER More informationQuantity required : 1 |
||||||
|
5 |
AP8134436 - PLAQUE FIX. CARENE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
7 |
AP8152279 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
8 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
10 |
AP8152272 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
11 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 20 |
||||||
|
12 |
AP8220269 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
13 |
AP8146334 - CHASSIS, ANODISE; More informationQuantity required : 1 |
||||||
|
13 |
AP8146773 - TELAIO V. More informationQuantity required : 1 |
||||||
|
14 |
AP8134674 - PLAQ.SUPP.CABLE MIN.; More informationQuantity required : 1 |
||||||
|
15 |
AP8201539 - COLLIER; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/5/6/img/50856.jpg)
16 |
SCREW - FOR FUEL TANK MOUNTING "PIAGGIO GENUINE PART" APRILIA RS 50-125 1999>2010/SCREW FOR SPIDER PLATE- APRILIA SL 1000 FALCO 2000>2003, TUONO 1000 2002>2005 -AP8150314- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
17 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/7/img/71187.JPG)
18 |
AP8102544 - RIVET FILETE+MOLETE More informationQuantity required : 12 |
