Vehicle Exploded View - APRILIA RSV2 1000 RSV 1000 2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

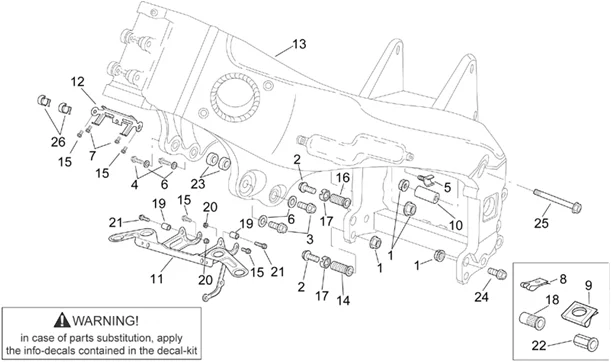

Chassis : 28.11 CHASSIS III
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/315/RSV_1000_2003_28.11.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
1 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 4 |
||||||
2 |
AP8152317 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/5/img/71965.jpg)
3 |
AP8152318 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
4 |
AP8152325 - VIS BRIDE More informationQuantity required : 2 |
||||||
|
5 |
AP8220269 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/0/5/img/71405.jpg)
5 |
AP8120582 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/6/img/71856.JPG)
6 |
AP8150292 - RONDELLE ELASTIQUE COURBE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
7 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8152246- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
8 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
9 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 2 |
||||||
|
10 |
AP8121998 - ENTRETOISE SUP.MOT.; More informationQuantity required : 1 |
||||||
|
11 |
AP8134638 - SUPPORT INF. RADIATEUR; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/8/9/2/2/img/48922.jpg)
12 |
RADIATOR SUPPORT (UPPER) "PIAGGIO GENUINE PART" APRILIA 1000 RSV-2, FALCO, TUONO, FUTURA -AP8134380- More informationQuantity required : 1 |
||||||
|
13 |
AP8146334 - CHASSIS, ANODISE; More informationQuantity required : 1 |
||||||
|
13 |
AP8146773 - TELAIO V. More informationQuantity required : 1 |
||||||
|
14 |
AP8121997 - DOUILLE DE REGLAGE INF.; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
15 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 4 |
||||||
|
16 |
AP8121996 - DOUILLE DE REGLAGE SUP.; More informationQuantity required : 1 |
||||||
|
17 |
AP8121995 - BAGUE FIX. MOTEUR; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/7/img/71187.JPG)
18 |
AP8102544 - RIVET FILETE+MOLETE More informationQuantity required : 10 |
||||||
|
19 |
AP8121313 - DOUILLE CONIQUE; More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
20 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/4/img/71944.jpg)
21 |
SCREW - FLANGE "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8152281- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/0/5/img/71205.JPG)
22 |
HEX THREADED INSERT "PIAGGIO GENUINE PART"COMMON TO MOTORBIKE RANGE -AP8102902- More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/5/9/img/46759.JPG)
23 |
AP8121254 - ENTRETOISE AV.G.MOTEUR More informationQuantity required : 2 |
||||||
|
24 |
AP8152398 - VIS BRIDE More informationQuantity required : 1 |
||||||
|
24 |
AP8152316 - VIS BRIDE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/0/img/72140.JPG)
26 |
AP8201727 - GUIDE-CABLE NOIR More informationQuantity required : 2 |
