Vehicle Exploded View - APRILIA RS 660 4T Factory E5+2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

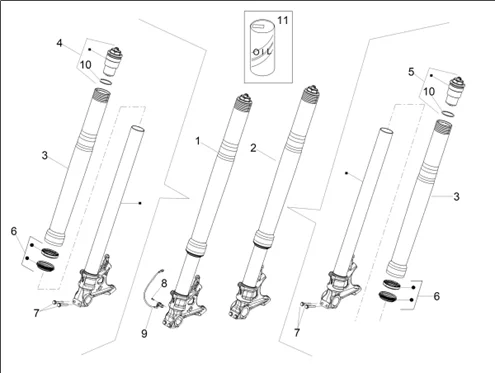

Suspensions : 04.01 FOURCHE AV. OHLINS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_04.01.png)
1 |
2B012027 - RIGHT FORK LEG More informationQuantity required : 1 |
||||||
|
2 |
2B012028 - LEFT FORK LEG More informationQuantity required : 1 |
||||||
|
3 |
2B014625 - OUTER TUBE ASSY WITH BUSHINGS More informationQuantity required : 2 |
||||||
|
4 |
2B014621 - COMPLETE TOP CAP RH BLUE More informationQuantity required : 1 |
||||||
|
5 |
2B014622 - COMPLETE TOP CAP LH BLUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/4/4/1/img/156441.jpg)
6 |
2B006021 - JEU DE JOINTS More informationQuantity required : 2 |
||||||
|
7 |
2B006022 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/5/img/71935.jpg)
8 |
AP8152268 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/8/6/6/0/img/178660.jpg)
9 |
1D003350 - ACTIVE ABS WHEEL SPEED SENSOR More informationQuantity required : 1 |
||||||
|
10 |
2B005852 - JOINT SPIE More informationQuantity required : 2 |
||||||
|
11 |
AP8116071 - HUILE FOURCHE More informationQuantity required : 1 |
