Vehicle Exploded View - APRILIA RS 660 4T Factory E5+2025 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

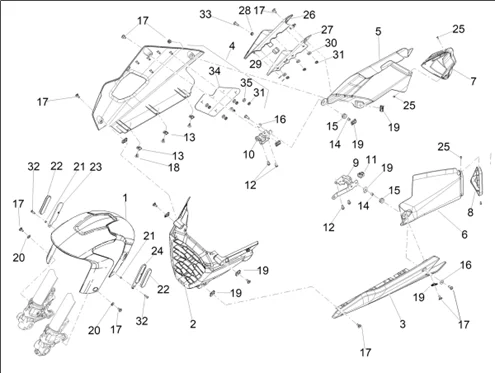

Carrosserie : 02.03 GARDE-BOUE AV.-EMBASEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1278/RS_660_4T_Factory_E52025_EMEA_02.03.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/7/9/9/img/174799.jpg)
1 |
2B008635 - FRONT MUDGUARD More informationQuantity required : 1 |
||||||
2 |
2B013074 - FAIRING TIP More informationQuantity required : 1 |
||||||
|
3 |
2B006623 - CARENAGE INFERIEUR GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/0/4/0/9/3/img/204093.jpg)
3 |
2B006623000NV - CARÃ-NAGE INF.G V.NOIR More informationQuantity required : 1 |
||||||
|
4 |
2B013076 - LOWER RIGHT FAIRING More informationQuantity required : 1 |
||||||
|
4 |
2B014858000NV - COMPLETE RH LOWER FAIRING N/DEC More informationQuantity required : 1 |
||||||
|
5 |
2B014615 - RIGHT SILENCER PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/1/5/1/7/img/171517.jpg)
6 |
2B007477 - LEFT SILENCER PROTECTION More informationQuantity required : 1 |
||||||
|
7 |
2B012823 - AESTHETIC TERMINAL EXHAUST PROTECTION R More informationQuantity required : 1 |
||||||
|
8 |
2B007479 - LEFT TERMINAL PART More informationQuantity required : 1 |
||||||
|
9 |
2B013093 - LEFT LOWER FAIRING FIXING BRACKET More informationQuantity required : 1 |
||||||
|
10 |
2B014619 - RIGHT LOW. FAIRING FIX. BRACKET + RIVET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/9/img/72919.jpg)
11 |
CM013203 - RESSORT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/8/img/71938.jpg)
12 |
AP8152272 - VIS BRIDE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
13 |
NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/9/5/img/72295.jpg)
14 |
AP8221036 - BAGUE 5,3X8X7,1 More informationQuantity required : 2 |
||||||
|
15 |
401605 - SILENBLOC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/0/7/img/69207.jpg)
16 |
841821 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
17 |
SCREW - (5X9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE -AP8150500 More informationQuantity required : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/2/4/4/3/img/42443.jpg)
18 |
896175 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
19 |
CLIP M5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8102375 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
20 |
SPRING WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150376 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/0/img/71390.jpg)
21 |
AP8120253 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/5/0/2/img/57502.jpg)
22 |
AP8224623 - CATADIOTTRO AMBRA More informationQuantity required : 2 |
||||||
|
23 |
2B011441 - SUPPORT CATADIOPTRE D. More informationQuantity required : 1 |
||||||
|
24 |
2B011442 - SUPPORT CATADIOPTRE G. More informationQuantity required : 1 |
||||||
|
25 |
2B009107 - RIVET A DECLIC More informationQuantity required : 4 |
||||||
|
26 |
2B014601 - CATALYST COVER More informationQuantity required : 1 |
||||||
|
27 |
2B014620 - CATALYST HEAT SHIELD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/8/img/71488.jpg)
28 |
AP8121811 - "DOUILLE EN ""T""" More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/9/6/3/img/174963.jpg)
29 |
2B007247 - CAOUTCHOUC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/1/img/71181.jpg)
30 |
RUBBER SPACER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE APRILIA -AP8102504 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/8/img/71888.jpg)
31 |
WASHER FOR FAIRINGS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -AP8150450 More informationQuantity required : 7 |
||||||
|
32 |
2B003307 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
33 |
SCREW - FLANGE 5X16 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTORBIKE APRILIA +MOTO-GUZZI -AP8152298 More informationQuantity required : 1 |
||||||
|
34 |
2B014807 - LOWER BODY HEAT SHIELD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/2/img/71832.jpg)
35 |
AP8150177 - RONDELLE More informationQuantity required : 1 |
