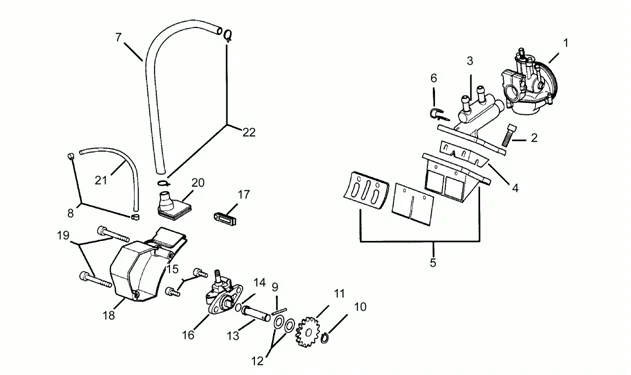

Moteur : 8 CARBURATEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/265/RS_50_1993-1995_8.PNG)
2 |
AP8502564 - VIS More informationQuantity required : 1 |
||||||
|
3 |
AP8206602 - COLLECTEUR ASPIRATION More informationQuantity required : 1 |
||||||
|
3 |
AP8206628 - COLLECTEUR ASPIRATION More informationQuantity required : 1 |
||||||
|
4 |
AP8206242 - PLATINE SOUP.LAMEL. More informationQuantity required : 1 |
||||||
|
5 |
AP8206300 - SOUPAPE A LAMELLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/8/8/img/55788.jpg)
6 |
CLUTCH CABLE ANCHORING BLOCK "PIAGGIO GENUINE PART" APRILIA 50 RS, TUONO, RX, SX, MX, PEGASO, CLASSIC, AF1 -AP8206303- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/9/6/4/img/55964.jpg)
7 |
AP8206710 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/9/6/5/img/55965.jpg)
8 |
AP8206711 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/6/6/img/61066.JPG)
9 |
AP8508669 - ROULEAU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/0/9/img/61009.jpg)
10 |
AP8501467 - BAGUE SEEGER POUR ARBRE More informationQuantity required : 1 |
||||||
|
11 |
AP8508872 - PIGNON DE POMPE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/7/6/8/img/55768.jpg)
12 |
AP8206277 - RONDELLE ACIER BLEU More informationQuantity required : 5 |
||||||
|
13 |
AP8206632 - PIVOT POMPE HUILE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/4/4/img/61044.jpg)
14 |
AP8502665 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/6/7/img/61067.jpg)
16 |
OIL PUMP "PIAGGIO GENUINE PART" APRILIA 50 SX, RX, MX, RS, CLASSIC, EUROPA, PEGASO, AF1 1991>2002 -AP8508863- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/6/4/img/61064.jpg)
17 |
CABLE ADJUSTER RUBBER FOR OIL PUMP "PIAGGIO GENUINE PART" APRILIA 50 SX, RX, RS, PEGASO, EUROPA, CLASSIC -AP8508667- More informationQuantity required : 1 |
||||||
|
18 |
AP8206645 - COUVERCLE POMPE HUILE More informationQuantity required : 1 |
||||||
|
19 |
AP8206280 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/1/0/6/5/img/61065.jpg)
20 |
AP8508668 - CAOUTCHOUC TUYAUX HUILE More informationQuantity required : 1 |
||||||
|
21 |
AP8206631 - TUYAU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/8/0/7/img/55807.jpg)
22 |
HOSE CLAMP "PIAGGIO GENUINE PART" APRILIA 50 RS, SX, RX, AF1, EUROPA, PEGASO -AP8206342- More informationQuantity required : 2 |
