Vehicle Exploded View - APRILIA RS 50 1993-1995
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

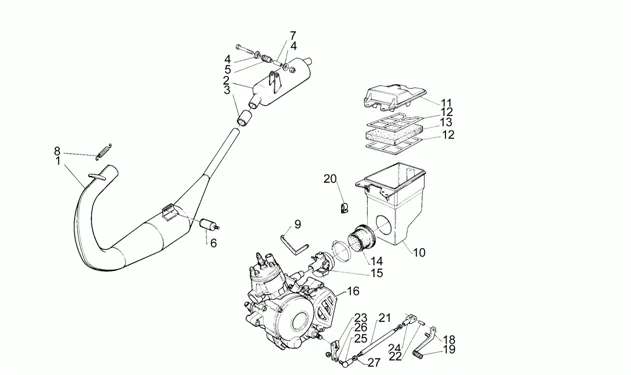

Chassis : 19 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/265/RS_50_1993-1995_19.PNG)
2 |
AP8219265 - SILENCIEUX ALU More informationQuantity required : 1 |
||||||
|
3 |
AP8220297 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/6/img/45096.jpg)
4 |
AP8101284 - RONDELLE More informationQuantity required : 2 |
||||||
|
5 |
AP8101285 - SILENTBLOC More informationQuantity required : 1 |
||||||
|
6 |
AP8120459 - SILENTBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/2/0/img/46720.jpg)
7 |
AP8121058 - ENTRETOISE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/4/img/45094.jpg)
8 |
AP8101259 - RESS.HEL.CYL.TRACT. More informationQuantity required : 2 |
||||||
|
10 |
AP8238116 - BASE CORPS FILTRE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/8/3/6/img/56836.jpg)
14 |
JOINING SLEEVE- FROM CARB TO AIRBOX "PIAGGIO GENUINE PART" APRILIA 50 RS 1993>1998 -AP8220180- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/8/0/3/3/img/58033.jpg)
18 |
GEARBOX SELECTOR "PIAGGIO GENUINE PART" APRILIA 50 RS 1993>1998, 125 RS 2006>2010 -AP8232838- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
19 |
LEVER RUBBER FOR REAR BRAKE LEVER "PIAGGIO GENUINE PART" FOR MOTO-GUZZI 850-1200 NORGE, BREVA, 1200 SPORT -AP8120912- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
20 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/3/5/img/46735.jpg)
21 |
GEARBOX LINKAGE ROD "PIAGGIO GENUINE PARTS" APRILIA 50 RS 1993>1998, 125 RS 1996>2010 -AP8121163- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/8/0/1/4/img/58014.jpg)
23 |
GEARBOX CONNECTING ROD "PIAGGIO GENUINE PART" APRILIA 50 RS 1993>2005, TUONO 2003>2005 -AP8232207- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/6/7/img/71167.jpg)
24 |
FORK FOR REAR BRAKE MASTER CYLINDER "PIAGGIO GENUINE PART" COMMON TO APRILIA/ MOTO-GUZZI MOTORBIKES RANGE -AP8101968- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/8/img/71268.jpg)
25 |
GEARBOX SELECTOR BALL JOINT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA /MOTO-GUZZI -AP8110053- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/8/2/img/71482.jpg)
26 |
AP8121697 - RESSORT A GODET More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/8/img/71918.jpg)
27 |
AP8152138 - ECROU More informationQuantity required : 1 |
