Vehicle Exploded View - APRILIA RS 50 1993-1995
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

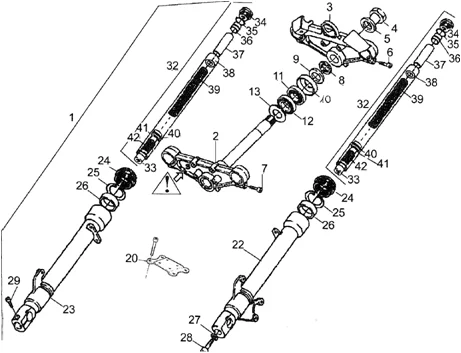

Chassis : 17 FOURCHE AV. SHOWA
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/265/RS_50_1993-1995_17.PNG)
1 |
AP8203576 - FOURCHE COMPLETE More informationQuantity required : 1 |
||||||
|
2 |
Base avec tube |
||||||
|
3 |
Plaque sup. fourche |
||||||
|
4 |
Bouchon tube |
||||||
|
5 |
Rondelle |
||||||
|
6 |
Vis |
||||||
|
7 |
Vis |
||||||
|
8 |
Bague |
||||||
|
9 |
AP8101272 - ANNEAU SUPPORT PARE-POUSSIERE More informationQuantity required : 1 |
||||||
|
10 |
AP8120211 - PARE-POUSSIERE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/1/7/img/45817.jpg)
11 |
STEERING COLUMN BEARING ( UPPER) "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASO -AP8110025- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/6/img/71266.jpg)
12 |
STEERING COLUMN BEARING (LOWER) "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, SX, TUONO, AF1, CLASSIC, PEGASO -AP8110024 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/0/9/5/img/45095.jpg)
13 |
AP8101271 - ANNEAU RACLEUR INF. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/2/8/4/img/45284.jpg)
20 |
STIFFENING PLATE "PIAGGIO GENUINE PART" APRILIA 50 RS, AFI, TUONO, EUROPA -AP8103705- More informationQuantity required : 1 |
||||||
|
22 |
Fourreau G |
||||||
|
23 |
Fourreau D |
||||||
|
24 |
Pare-poussière |
||||||
|
25 |
AP8203790 - BAGUE DE BUTEE More informationQuantity required : 2 |
||||||
|
26 |
Joint spi |
||||||
|
27 |
AP8203794 - RONDELLE More informationQuantity required : 2 |
||||||
|
28 |
AP8203795 - VIS More informationQuantity required : 1 |
||||||
|
29 |
Vis |
||||||
|
32 |
AP8203848 - TIGE More informationQuantity required : 2 |
||||||
|
33 |
Amortisseur |
||||||
|
34 |
AP8203777 - BOUCHON; More informationQuantity required : 2 |
||||||
|
35 |
AP8203702 - BAGUE DE BUTEE More informationQuantity required : 2 |
||||||
|
36 |
AP8203856 - GR. BOUCHON CPL. More informationQuantity required : 2 |
||||||
|
37 |
Entretoise |
||||||
|
38 |
Rondelle |
||||||
|
39 |
AP8203859 - RESSORT More informationQuantity required : 1 |
||||||
|
40 |
Segm.élé.pomp.fourch. |
||||||
|
41 |
Amortisseur |
||||||
|
42 |
AP8203786 - CONTRE-RESSORT; More informationQuantity required : 2 |
