Vehicle Exploded View - APRILIA RALLY 50 H2O 1996-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

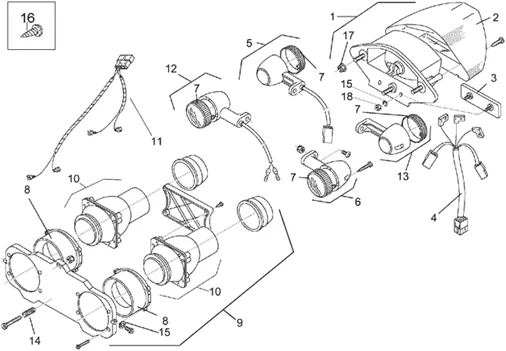

Chassis : 28.28 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/263/Rally_50_H2O_1996-1999_28.28.PNG)
1 |
AP8124352 - FEU ARRIERE AVEC CATADIOPTRE More informationQuantity required : 1 |
||||||
|
2 |
AP8112883 - GLACE PHARE AR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/8/9/6/img/45896.JPG)
3 |
AP8112916 - CATADIOPTRE FEU ARRIERE More informationQuantity required : 1 |
||||||
|
4 |
AP8212691 - CABLAGE FEU AR More informationQuantity required : 1 |
||||||
|
5 |
AP8212700 - CLIGNOT.AV.GA./ARR.DR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/1/img/56291.JPG)
7 |
AP8212680 - VITRE CLIGNOTANT More informationQuantity required : 4 |
||||||
|
9 |
AP8212801 - PHARE AVANT; More informationQuantity required : 1 |
||||||
|
12 |
AP8124140 - CLIGNOT.AV.DR./ARR.GA.; More informationQuantity required : 1 |
||||||
|
13 |
AP8212699 - CLIGNOT.AV.DR./ARR.GA. More informationQuantity required : 1 |
||||||
|
14 |
AP8121023 - RESSORT REGLAGE PHARE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/0/4/img/71804.JPG)
15 |
AP8150011 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/8/img/71878.jpg)
16 |
AP8150420 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/8/img/71958.jpg)
17 |
AP8152299 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
18 |
AP8152306 - ECROU AUTOBLOQU. More informationQuantity required : 2 |
