Vehicle Exploded View - APRILIA RALLY 50 H2O 1996-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

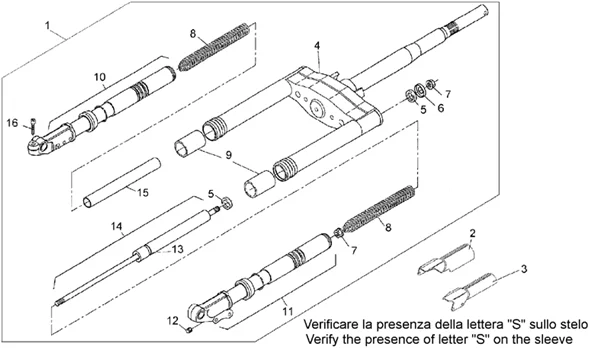

Chassis : 28.03 FOURCHE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/263/Rally_50_H2O_1996-1999_28.03.PNG)
1 |
AP8203751 - FOURCHE CPL-ANNEAU JAUNE; More informationQuantity required : 1 |
||||||
|
4 |
AP8203738 - BASE MANCHON-BAGUE BLEU; More informationQuantity required : 1 |
||||||
|
4 |
AP8203802 - BASE MANCHON-BAGUE JAUNE More informationQuantity required : 1 |
||||||
|
5 |
AP8203740 - CAOUTCHOUC; More informationQuantity required : 2 |
||||||
|
6 |
AP8203684 - RONDELLE More informationQuantity required : 2 |
||||||
|
8 |
AP8203677 - RESSORT More informationQuantity required : 2 |
||||||
|
9 |
AP8203739 - PARE-CHOCS; More informationQuantity required : 2 |
||||||
|
10 |
AP8203686 - TIGE+PORTE-ROUE D More informationQuantity required : 1 |
||||||
|
11 |
AP8203687 - TIGE+PORTE-ROUE G More informationQuantity required : 1 |
||||||
|
12 |
AP8203689 - ECROU BORGNE More informationQuantity required : 1 |
||||||
|
13 |
AP8203690 - DOUILLE DE COULISSEMENT More informationQuantity required : 2 |
||||||
|
14 |
AP8203716 - ELEM.POMPAGE CPL More informationQuantity required : 2 |
||||||
|
15 |
AP8203678 - TUYAU PRECHARGE More informationQuantity required : 2 |
||||||
|
16 |
AP8203571 - VIS More informationQuantity required : 2 |
