Vehicle Exploded View - APRILIA RALLY 50 H2O 1996-1999
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

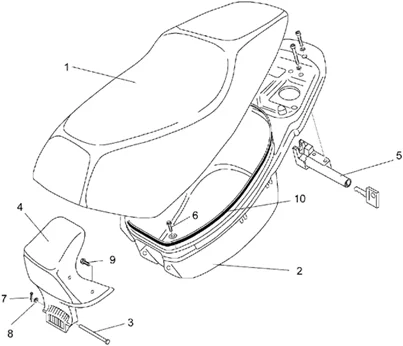

Chassis : 28.10 SELLE ET COMPART.P-CASQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/263/Rally_50_H2O_1996-1999_28.10.PNG)
1 |
AP8229149 - SELLE CPL LONGUE, NOIR; More informationQuantity required : 1 |
||||||
|
1 |
AP8229262 - SELLE CPL LONGUE GRIS-BLEU; More informationQuantity required : 1 |
||||||
|
2 |
AP8230923 - COMPART.P-CASQUE; More informationQuantity required : 1 |
||||||
|
3 |
AP8221173 - PIVOT CHARNIERE SELLE More informationQuantity required : 1 |
||||||
|
4 |
AP8238709 - ATTACHE STRUCT.SELLE, GRIS; More informationQuantity required : 1 |
||||||
|
5 |
AP8201564 - SERRURE SELLE; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
6 |
AP8152279 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/8/img/72138.jpg)
7 |
PIN FOR FUEL FILLER CAP "PIAGGIO GENUINE PART" PIAGGIO GILERA 50 SMT, RCR 2018> -AP8201673- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/8/5/img/55385.jpg)
8 |
STAR WASHER (FOR LOCKS) "PIAGGIO GENUINE PART" APRILIA ATLANTIC 125-250-500 2003>2012, RS 125 2011>2017, RS 50 2006>2016, SR 50 1993>2014 -AP8201748- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
9 |
AP8152278 - VIS BRIDE M6X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/1/7/2/4/img/41724.jpg)
10 |
HELMET COMPARTMENT GASKET "PIAGGIO GENUINE PART" APRILIA 50 RALLY, SR, MOJITO, AMICO -890507- More informationQuantity required : 1 |
