Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter Up-Date 2009-2010 PIAGGIO VU

Moteur : 01.17 COURROIE DE DISTRIBUTION ET COUVERCLE

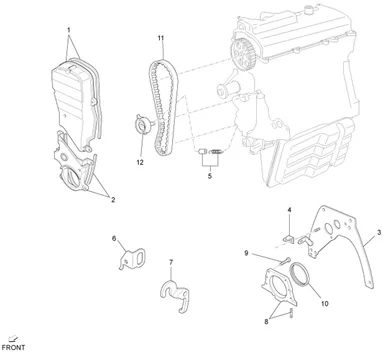

Courroie de distribution et couvercle
Search
1130387101000 - COUVERCLE

1
P2R reference P2R reference 120960
Maker reference Maker reference 1130387101

1130387101000 - COUVERCLE

More information

Quantity required : 1

1130287105000 - COUVERCLE

2
P2R reference P2R reference 119627
Maker reference Maker reference 1130287105

1130287105000 - COUVERCLE

More information

Quantity required : 1

1135087103000 - PLAQUE

3
P2R reference P2R reference 119215
Maker reference Maker reference 1135087103000

1135087103000 - PLAQUE

More information

Quantity required : 1

1126387101000 - SUPPORT

4
P2R reference P2R reference 113499
Maker reference Maker reference 1126387101000

1126387101000 - SUPPORT

More information

Quantity required : 1

TIMING CHAIN TENSIONER SPRING "PIAGGIO GENUINE PART" PORTER 1992>2009 -9004507001000

5
P2R reference P2R reference 118907
Maker reference Maker reference 9004507001000

TIMING CHAIN TENSIONER SPRING "PIAGGIO GENUINE PART" PORTER 1992>2009 -9004507001000

More information

Quantity required : 1

1228287107000 - ETRIER

6
P2R reference P2R reference 116615
Maker reference Maker reference 1228287107000

1228287107000 - ETRIER

More information

Quantity required : 1

1228187109000 - SUPPORT

7
P2R reference P2R reference 115292
Maker reference Maker reference 1228187109000

1228187109000 - SUPPORT

More information

Quantity required : 1

1130987103 - PLAQUE

8
P2R reference P2R reference 176837
Maker reference Maker reference 1130987103

1130987103 - PLAQUE

More information

Quantity required : 1

9161160620000 - BOULON

9
P2R reference P2R reference 111137
Maker reference Maker reference 9161160620000

9161160620000 - BOULON

More information

Quantity required : 4

SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" (ON CLUTCH SIDE) PIAGGIO PORTER 1992>2009 -9004311344000

10
P2R reference P2R reference 117595
Maker reference Maker reference 9004311344000

SEAL RING GASKET- FOR CRANSHAFT "PIAGGIO GENUINE PART" (ON CLUTCH SIDE) PIAGGIO PORTER 1992>2009 -9004311344000

More information

Quantity required : 1

TIMING BELT "PIAGGIO GENUINE PART" PORTER -1356887182000

11
P2R reference P2R reference 121752
Maker reference Maker reference 1356887182000

TIMING BELT "PIAGGIO GENUINE PART" PORTER -1356887182000

More information

Quantity required : 1

TIMING BELT TENSIONER "PIAGGIO GENUINE PART" 1000-1300 PORTER -1350587102000

12
P2R reference P2R reference 121484
Maker reference Maker reference 1350587102000

TIMING BELT TENSIONER "PIAGGIO GENUINE PART" 1000-1300 PORTER -1350587102000

More information

Quantity required : 1
