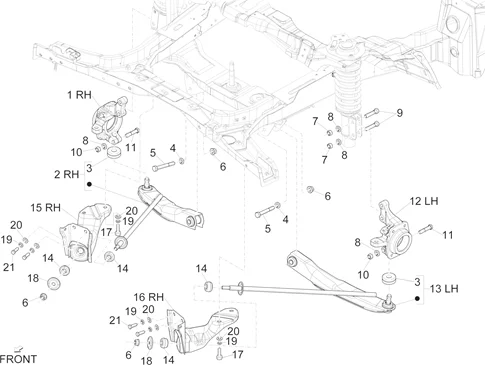

Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter Multitech E6 Entry Level 2017-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)
Suspensions - roues : 04.01 BRAS OSCILLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/848/Porter_Multitech_E6_Entry_Level_2017-2019_04.01.png)
1 |
B000522 - FUSEE DROIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/4/7/9/img/121479.jpg)
2 |
FRONT SUSPENSION ARM - RIGHT "PIAGGIO GENUINE PART" PORTER -B007554- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/9/4/9/img/113949.jpg)
3 |
262479 - PARE-POUSSIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/0/3/img/110303.jpg)
4 |
D9451201200 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/5/7/4/img/112574.jpg)
5 |
B007665 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/7/5/img/110475.jpg)
6 |
264878 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/4/7/img/110047.JPG)
7 |
D9411551200 - ECROU More informationQuantity required : 4 |
||||||
|
8 |
D9451201200 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/6/6/7/img/112667.jpg)
9 |
D9004101583 - BOULON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/3/4/img/111634.jpg)
10 |
D9411571200 - ECROU More informationQuantity required : 2 |
||||||
|
11 |
D9004101583 - BOULON More informationQuantity required : 2 |
||||||
|
12 |
B000521 - FUSEE GAUCHE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/4/7/7/img/121477.jpg)
13 |
FRONT SUSPENSION ARM - LEFT "PIAGGIO GENUINE PART" PORTER -B007555- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/8/5/0/img/113850.jpg)
14 |
PAD FOR FRONT SUSPENSION ARM "PIAGGIO GENUINE PARTS" PORTER -4867487Z01000- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/2/7/5/img/121275.JPG)
15 |
4807387Z01000 - SUPPORT More informationQuantity required : 1 |
||||||
|
16 |
4807487Z02000 - SUPPORT MOTEUR More informationQuantity required : 1 |
||||||
|
17 |
B005057 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/5/9/1/img/112591.JPG)
18 |
D9004201542 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/7/1/img/110471.jpg)
19 |
9451201000000 - RONDELLE More informationQuantity required : 4 |
||||||
|
20 |
D9461211001 - RONDELLE More informationQuantity required : 4 |
||||||
|
21 |
B005057 - BOULON More informationQuantity required : 4 |
