Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter Multitech E6 Entry Level 2017-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

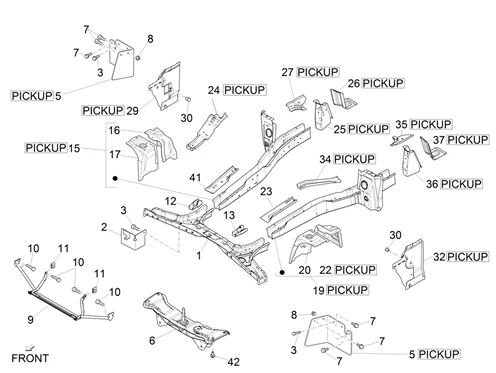

Châssis - parties plastiques - carrosseries : 02.02 CHÂSSIS/CAISSE AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/848/Porter_Multitech_E6_Entry_Level_2017-2019_02.02.png)
3 |
D9004159410 - VIS More informationQuantity required : 5 |
||||||
|
5 |
7662187Z01000 - GARDE-BOUE More informationQuantity required : 1 |
||||||
|
6 |
SUSPENSION CROSS MEMBER "PIAGGIO GENUINE PART" PORTER -1E0031645- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/6/3/img/151263.JPG)
7 |
CM288112 - VIS More informationQuantity required : 6 |
||||||
|
8 |
D9004179081 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/8/1/6/img/120816.jpg)
9 |
COOLANT RADIATOR PROTECTION "PIAGGIO GENUINE PART" PORTER -5290787Z03000- More informationQuantity required : 1 |
||||||
|
10 |
D9004159410 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/9/9/7/img/110997.jpg)
11 |
D9004181008 - ECROU More informationQuantity required : 2 |
||||||
|
12 |
5713387Z01000 - PROTECTION More informationQuantity required : 1 |
||||||
|
13 |
D5713487Z01 - PROTECTION More informationQuantity required : 1 |
||||||
|
15 |
B0047455 - CACHE ROUE DRT More informationQuantity required : 1 |
||||||
|
16 |
D5371187Z06 - PROTECTION More informationQuantity required : 1 |
||||||
|
17 |
1E0031635 - SUPPORT More informationQuantity required : 1 |
||||||
|
19 |
B0053475 - CACHE ROUE GAU More informationQuantity required : 1 |
||||||
|
20 |
1E0031625 - SUPPORT More informationQuantity required : 1 |
||||||
|
22 |
B005631 - PROTECTION More informationQuantity required : 1 |
||||||
|
23 |
B0233195 - PLAQUE More informationQuantity required : 1 |
||||||
|
24 |
B005630 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
26 |
B000898 - PLAQUE DRT. More informationQuantity required : 1 |
||||||
|
27 |
D5822387Z025 - PROTECTION More informationQuantity required : 1 |
||||||
|
29 |
B0070125 - MONTANT DRT. More informationQuantity required : 1 |
||||||
|
30 |
9004874013000 - BOUCHON More informationQuantity required : 2 |
||||||
|
32 |
5820487Z01000 - MONTANT More informationQuantity required : 1 |
||||||
|
34 |
D5711687Z03 - PLAQUE More informationQuantity required : 1 |
||||||
|
35 |
D5822487Z02 - PROTECTION More informationQuantity required : 1 |
||||||
|
36 |
B0061525 - SUPPORT PLATE FORME GAU. More informationQuantity required : 1 |
||||||
|
37 |
D5171887Z01 - PLAQUE More informationQuantity required : 1 |
||||||
|
41 |
B0060535 - SERRURE TRAVERSE AV.DRT. More informationQuantity required : 1 |
||||||
|
42 |
661064 - BOULON More informationQuantity required : 4 |
