Vehicle Exploded View - PIAGGIO VU PORTER ESSENCE/GPL/MÉTANE STANDARD 0 Porter Multitech E6 Entry Level 2017-2019
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

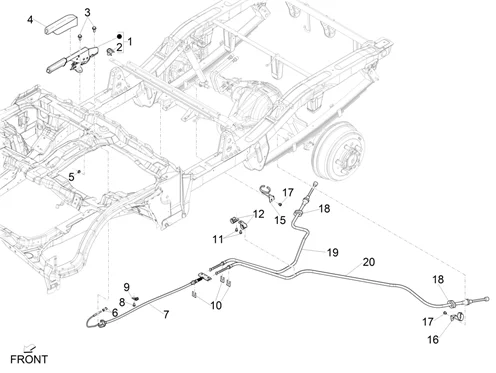

Instalation du freins - transmisisons : 05.06 FREIN DE STATIONNEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/848/Porter_Multitech_E6_Entry_Level_2017-2019_05.06.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/7/0/img/111070.jpg)
2 |
651928 - SENSOR More informationQuantity required : 1 |
||||||
3 |
D9165160822 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/6/8/1/img/114681.JPG)
4 |
615091 - COUVERCLE More informationQuantity required : 1 |
||||||
|
5 |
261322 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/7/9/7/img/109797.jpg)
6 |
D9411040600 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/2/4/6/img/116246.jpg)
7 |
TRANSMISSION CABLE FOR HANDBRAKE(FROM HANDLE TO SPLITTER) "PIAGGIO GENUINE PART" PORTER -B000875- More informationQuantity required : 1 |
||||||
|
8 |
9161160612000 - BOULON More informationQuantity required : 1 |
||||||
|
9 |
B005030 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/4/1/img/110441.jpg)
10 |
MOUNTING CLIP FOR HANDBRAKE CABLE "PIAGGIO GENUINE PART" PORTER -9004465038000- More informationQuantity required : 3 |
||||||
|
11 |
9161160612000 - BOULON More informationQuantity required : 2 |
||||||
|
12 |
644286 - COLLIER More informationQuantity required : 2 |
||||||
|
15 |
B005350 - SUPPORT More informationQuantity required : 1 |
||||||
|
16 |
B005351 - SUPPORT More informationQuantity required : 1 |
||||||
|
17 |
D9338116008 - VIS More informationQuantity required : 2 |
||||||
|
18 |
B000810 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/8/4/2/8/img/158428.JPG)
19 |
1R000355 - TRANSMISSION FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/0/2/9/img/120029.jpg)
20 |
TRANSMISSION CABLE FOR (REAR LEFT) MAIN HANDBRAKE "PIAGGIO GENUINE PART" PIAGGIO PORTER MULTITECH E4 -1R000354- More informationQuantity required : 1 |
