Vehicle Exploded View - PIAGGIO VU PORTER DIESEL MAXXI STANDARD 0 Porter Maxxi D120 E5 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

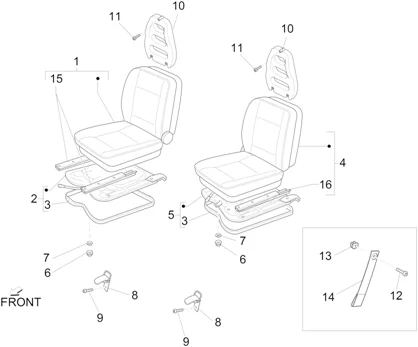

Châssis - parties plastiques - carrosseries : 02.33 SIÈGES AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/549/Porter_Maxxi_D120_E5_2011-2015_02.33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/3/0/4/9/img/143049.jpg)
1 |
RIGHT FRONT SEAT- GREY "PIAGGIO GENUINE PART" PORTER -CM281502 More informationQuantity required : 1 |
||||||
|
1 |
RIGHT FRONT SEAT- GREY "PIAGGIO GENUINE PART" PORTER -CM281502 More informationQuantity required : 1 |
||||||
2 |
CM038401 - COUVERTURE MOTEUR DRT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/7/3/5/img/121735.jpg)
3 |
615932 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/3/7/img/151237.jpg)
4 |
CM281601 - COUSSIN AVT G More informationQuantity required : 1 |
||||||
|
4 |
CM281601 - COUSSIN AVT G More informationQuantity required : 1 |
||||||
|
4 |
CM281601 - COUSSIN AVT G More informationQuantity required : 1 |
||||||
|
5 |
CM038402 - COUVERTURE MOTEUR GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/0/3/5/img/114035.jpg)
6 |
658842 - ECROU More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
7 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408 More informationQuantity required : 8 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/8/5/6/img/114856.jpg)
8 |
7137087Z01000 - CHARNIERE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/4/5/img/110045.jpg)
9 |
9165140816000 - BOULON More informationQuantity required : 4 |
||||||
|
10 |
566864 - HEADREST More informationQuantity required : 2 |
||||||
|
11 |
D9327056012 - VIS More informationQuantity required : 6 |
||||||
|
12 |
D9356016014 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/6/9/img/110269.jpg)
13 |
D9004189019 - PASSE-CABLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/4/8/2/5/img/114825.jpg)
14 |
7197387Z01030 - COLLIER More informationQuantity required : 2 |
||||||
|
15 |
850676 - KIT RAIL DE SIEGE DROIT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/2/2/9/6/img/122296.jpg)
16 |
850677 - KIT RAIL DE SIEGE GAUCHE More informationQuantity required : 1 |
