Vehicle Exploded View - PIAGGIO VU PORTER DIESEL MAXXI STANDARD 0 Porter Maxxi D120 E5 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

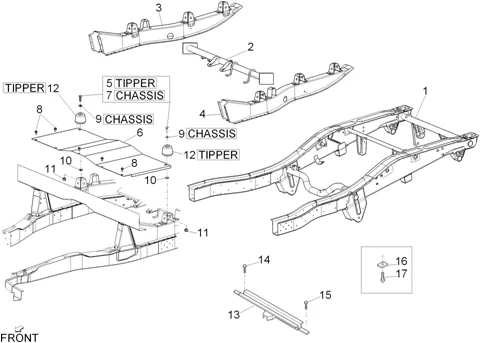

Châssis - parties plastiques - carrosseries : 02.04 CHÂSSIS/CAISSE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/549/Porter_Maxxi_D120_E5_2011-2015_02.04.PNG)
1 |
B0058155 - CHASSIS More informationQuantity required : 1 |
||||||
|
2 |
B0054195 - TRAVERSE SUPPORT BOITE DE VITESSE More informationQuantity required : 1 |
||||||
|
2 |
B0233505 - FAISCEAU PRINCIPAL More informationQuantity required : 1 |
||||||
|
3 |
B0047805 - CACHE ROUE ARR.GAU. More informationQuantity required : 1 |
||||||
|
4 |
B0047815 - CACHE ROUE ARR.GAU. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/8/5/img/67285.jpg)
5 |
583480 - BOULON More informationQuantity required : 2 |
||||||
|
6 |
B000153 - PROTECTION More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/5/1/img/65651.jpg)
7 |
031157 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/8/7/img/110387.jpg)
8 |
D9166160820 - BOULON More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/7/0/img/65370.jpg)
9 |
013962 - RONDELLE S01396200 More informationQuantity required : 2 |
||||||
|
10 |
078783 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/6/5/img/63765.jpg)
11 |
NUT - M10 "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -002440 More informationQuantity required : 2 |
||||||
|
12 |
B000071 - CUVETTE More informationQuantity required : 2 |
||||||
|
13 |
6510287Z04000 - TRAVERSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/1/9/8/img/151198.jpg)
14 |
CM287314 - BOULON More informationQuantity required : 4 |
||||||
|
15 |
9165141025000 - BOULON More informationQuantity required : 4 |
||||||
|
16 |
9004541144000 - TAMPON More informationQuantity required : 2 |
||||||
|
17 |
9352014014000 - VIS More informationQuantity required : 2 |
