Vehicle Exploded View - PIAGGIO VU PORTER DIESEL STANDARD 0 Porter D120 E5 2010-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

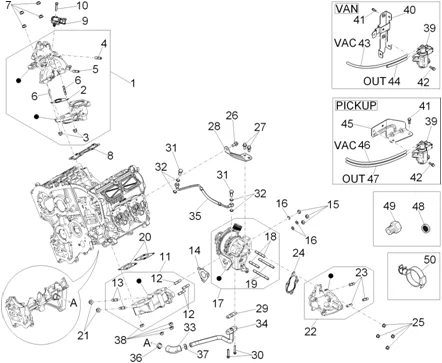

Moteur : 01.33 RACCORDS D'ADMISSION ET D'ÉCHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/345/Porter_D120_E5_2010-2015_01.33.PNG)
1 |
B010720 - COLLECTEUR More informationQuantity required : 1 |
|||||||||
|
2 |
B010734 - JOINT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
3 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245 More informationQuantity required : 2 |
|||||||||
|
4 |
003972 - VIS SANS T?TE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/5/img/66665.jpg)
5 |
484706 - GOUJON More informationQuantity required : 1 |
|||||||||
|
6 |
B010699 - GOUJON More informationQuantity required : 2 |
|||||||||
|
7 |
434078 - ECROU More informationQuantity required : 4 |
|||||||||
|
8 |
889158 - JOINT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/0/6/6/2/img/120662.jpg)
9 |
SENSOR FOR PRESSURE AND TEMPERATURE "PIAGGIO GENUINE PART" PORTER DIESEL -889463 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
10 |
018639 - VIS More informationQuantity required : 1 |
|||||||||
|
11 |
B0113504 - COLLECTEUR ECHAPP. More informationQuantity required : 1 |
|||||||||
|
12 |
B011250 - GOUJON More informationQuantity required : 3 |
|||||||||
|
13 |
B010773 - GOUJON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/1/6/img/111816.jpg)
14 |
B011033 - JOINT More informationQuantity required : 1 |
|||||||||
|
15 |
B010563 - ECROU More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/1/img/69481.jpg)
16 |
WATER PUMP WASHER "PIAGGIO GENUINE PART" APRILIA 50-125 RS, RX, RS -847183 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/2/2/4/img/151224.jpg)
17 |
TURBO "PIAGGIO GENUINE PARTS" PORTER DIESEL -SPB011386 More informationQuantity required : 1 |
|||||||||
|
18 |
889895 - GOUJON More informationQuantity required : 2 |
|||||||||
|
19 |
889896 - GOUJON More informationQuantity required : 2 |
|||||||||
|
20 |
889820 - JOINT More informationQuantity required : 2 |
|||||||||
|
21 |
434078 - ECROU More informationQuantity required : 2 |
|||||||||
|
22 |
B004420 - COLLECTEUR ECHAPP. More informationQuantity required : 1 |
|||||||||
|
23 |
000456 - GOUJON More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/4/1/8/img/112418.jpg)
24 |
660559 - JOINT More informationQuantity required : 1 |
|||||||||
|
25 |
615769 - ECROU More informationQuantity required : 4 |
|||||||||
|
26 |
889637 - VIS More informationQuantity required : 1 |
|||||||||
|
27 |
B010725 - VIS More informationQuantity required : 2 |
|||||||||
|
28 |
889710 - EQUERRE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/8/0/0/img/111800.jpg)
29 |
882605 - JOINT More informationQuantity required : 1 |
|||||||||
|
30 |
018639 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/4/0/3/img/112403.jpg)
31 |
888791 - VIS More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/8/8/6/img/110886.jpg)
32 |
882611 - RONDELLE More informationQuantity required : 4 |
|||||||||
|
33 |
B011308 - TUBE D'HUILE More informationQuantity required : 1 |
|||||||||
|
34 |
B010412 - TUBE D'HUILE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/3/9/5/img/117395.jpg)
35 |
B010786 - TUBE D'HUILE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/6/0/4/img/142604.jpg)
36 |
CM001906 - COLLIER More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/8/img/72868.jpg)
37 |
COOLANT//AIR FILTER HOSE CLAMP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM001907 More informationQuantity required : 1 |
|||||||||
|
38 |
434078 - ECROU More informationQuantity required : 4 |
|||||||||
|
39 |
B007346 - MODULE DE PRESSION More informationQuantity required : 1 |
|||||||||
|
40 |
B007638 - EQUERRE More informationQuantity required : 1 |
|||||||||
|
41 |
D9165260616 - BOULON More informationQuantity required : 2 |
|||||||||
|
41 |
D9165260616 - BOULON More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/2/2/3/img/110223.jpg)
42 |
D9165140612 - BOULON More informationQuantity required : 2 |
|||||||||
|
43 |
B023178 - TUBE MODULATEUR DE PRESSION More informationQuantity required : 1 |
|||||||||
|
44 |
B023179 - TUBE MODULATEUR DE PRESSION More informationQuantity required : 1 |
|||||||||
|
45 |
B006144 - EQUERRE More informationQuantity required : 1 |
|||||||||
|
46 |
B023242 - TUBE MODULATEUR DE PRESSION More informationQuantity required : 1 |
|||||||||
|
47 |
B023241 - TUBE MODULATEUR DE PRESSION More informationQuantity required : 1 |
|||||||||
|
48 |
B011226 - FILTRE A HUILE More informationQuantity required : 1 |
|||||||||
|
49 |
B011227 - RIDUCTION More informationQuantity required : 1 |
|||||||||
|
50 |
B023056 - COLLIER More informationQuantity required : 1 |
|||||||||
All the exploded views of this vehicle
-
