Vehicle Exploded View - PIAGGIO VU PORTER DIESEL STANDARD 0 Porter D120 E5 2010-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

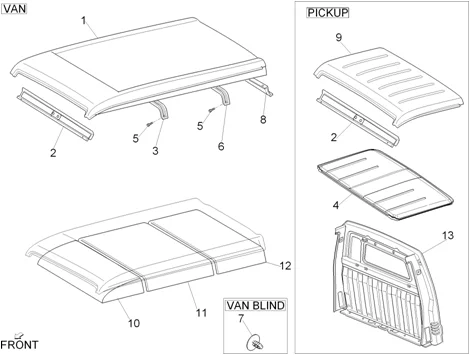

Châssis - parties plastiques - carrosseries : 02.15 PANNEAU DU TOIT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/345/Porter_D120_E5_2010-2015_02.15.PNG)
1 |
6311187Z02000 - PANNEAU More informationQuantity required : 1 |
||||||
|
2 |
6313287Z01000 - PANNEAU More informationQuantity required : 1 |
||||||
|
3 |
B0078245 - RENFORT More informationQuantity required : 1 |
||||||
|
4 |
613694 - COUVERTURE More informationQuantity required : 1 |
||||||
|
5 |
D9004159292 - VIS More informationQuantity required : 4 |
||||||
|
6 |
B0078255 - PROTECTION More informationQuantity required : 1 |
||||||
|
7 |
230648 - BOUTON More informationQuantity required : 1 |
||||||
|
8 |
6313487Z01000 - TRAVERSE More informationQuantity required : 1 |
||||||
|
9 |
6311187Z01000 - PANNEAU More informationQuantity required : 1 |
||||||
|
10 |
B007226 - COUVERTURE AVANT More informationQuantity required : 1 |
||||||
|
11 |
B007227 - COUVERTURE DU CENTRE More informationQuantity required : 1 |
||||||
|
12 |
B007228 - COUVERTURE ARRIERE More informationQuantity required : 1 |
||||||
|
13 |
B007232 - PANNEAU INS.ARRIERE More informationQuantity required : 1 |
