Vehicle Exploded View - PIAGGIO VU PORTER DIESEL STANDARD 0 Porter D120 E5 2010-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/brand/piaggio-vu.jpg)

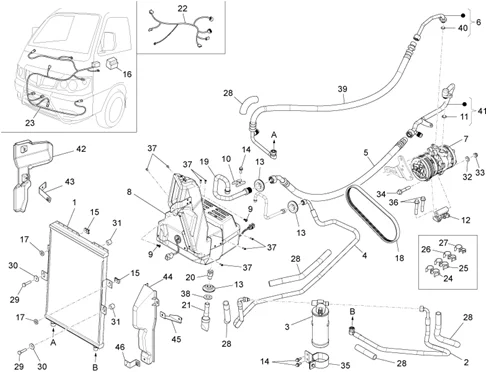

Châssis - parties plastiques - carrosseries : 02.47 AIR CONDITIONNÉ
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/345/Porter_D120_E5_2010-2015_02.47.PNG)
1 |
612189 - RADIATEUR COND. More informationQuantity required : 1 |
||||||
|
2 |
612197 - TUYAU More informationQuantity required : 1 |
||||||
|
3 |
1E000995 - FILTRE ET DISP.PRESSURE More informationQuantity required : 1 |
||||||
|
4 |
612198 - TUYAU More informationQuantity required : 1 |
||||||
|
5 |
B005447 - TUYAU More informationQuantity required : 1 |
||||||
|
6 |
B005382 - TUYAU ESSENCE More informationQuantity required : 1 |
||||||
|
7 |
B011434 - POMPE DE CLIMATISATION More informationQuantity required : 1 |
||||||
|
8 |
B004506 - GROUPE EVAPORATEUR More informationQuantity required : 1 |
||||||
|
9 |
D9356715014 - VIS More informationQuantity required : 2 |
||||||
|
10 |
612499 - FLANGIA FISS.T More informationQuantity required : 1 |
||||||
|
11 |
B005425 - SEGMENT More informationQuantity required : 1 |
||||||
|
12 |
B010527 - EQUERRE More informationQuantity required : 1 |
||||||
|
13 |
612500 - GOMMINO More informationQuantity required : 1 |
||||||
|
14 |
CM287320 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
15 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
|
16 |
612498 - (*) COPRIRELE' More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/8/img/65368.jpg)
17 |
013950 - RONDELLE S01395000 More informationQuantity required : 2 |
||||||
|
18 |
B010778 - COURROIE TRAPEZ More informationQuantity required : 1 |
||||||
|
19 |
B005643 - TUYAU More informationQuantity required : 1 |
||||||
|
20 |
612501 - SCARICO CONDEN More informationQuantity required : 1 |
||||||
|
21 |
612502 - ASSIEME SCARIC More informationQuantity required : 1 |
||||||
|
22 |
B005641 - FAISCEAU CABLES More informationQuantity required : 1 |
||||||
|
23 |
B007392 - GR.CABLES More informationQuantity required : 1 |
||||||
|
24 |
612503 - ASSIEME MOLLET More informationQuantity required : 1 |
||||||
|
25 |
612504 - ASSIEME MOLLET More informationQuantity required : 1 |
||||||
|
26 |
612505 - ASSIEME MOLLET More informationQuantity required : 1 |
||||||
|
27 |
612506 - ASSIEME MOLLET More informationQuantity required : 1 |
||||||
|
28 |
612476 - SPIRALE DYNAFL More informationQuantity required : 1 |
||||||
|
29 |
612483 - VIS More informationQuantity required : 2 |
||||||
|
30 |
612489 - RONDELLE More informationQuantity required : 3 |
||||||
|
31 |
612470 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
32 |
B011007 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
33 |
889505 - ECROU More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/7/7/img/69077.jpg)
34 |
833664 - VIS More informationQuantity required : 1 |
||||||
|
35 |
B000994 - EQUERRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/1/img/72731.jpg)
36 |
B016806 - VIS M8X40 More informationQuantity required : 2 |
||||||
|
37 |
B005644 - VIS More informationQuantity required : 7 |
||||||
|
38 |
612496 - RONDELLE More informationQuantity required : 1 |
||||||
|
39 |
B007419 - TUYAU More informationQuantity required : 1 |
||||||
|
40 |
B005424 - SEGMENT More informationQuantity required : 1 |
||||||
|
41 |
B023142 - TUYAU More informationQuantity required : 1 |
||||||
|
42 |
B023220 - CONVOYEUR RADIATEUR DRT More informationQuantity required : 1 |
||||||
|
43 |
B023267 - EQUERRE More informationQuantity required : 1 |
||||||
|
44 |
B023221 - CONVOYEUR RADIATEUR GAU More informationQuantity required : 1 |
||||||
|
45 |
B023268 - EQUERRE More informationQuantity required : 1 |
||||||
|
46 |
B023260 - EQUERRE More informationQuantity required : 1 |
