Vehicle Exploded View - MOTO-GUZZI NTX 350 1987-1990
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

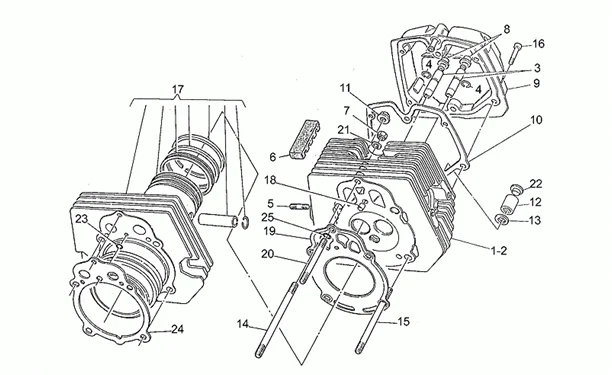

Moteur : 34.27 TÊTE CYLINDRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/509/NTX_350_1987-1990_34.27.PNG)
1 |
|
||||||
|
2 |
|
||||||
|
3 |
GU61036801 - GUIDE SOUPAPE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/1/5/0/img/132150.jpg)
4 |
GU90353009 - ANNEAU ELASTIQUE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/8/1/1/img/132811.jpg)
5 |
GU96506042 - VIS SANS TETE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/6/4/img/129464.jpg)
6 |
GU19025300 - PLAQUETTE ANTIVIBRATILE More informationQuantity required : 4 |
||||||
|
7 |
GU23021910 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/7/5/img/129475.jpg)
8 |
VALVE GUIDE GASKET "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, NEVADA, STRADA, V7 -GU19037820 More informationQuantity required : 4 |
||||||
|
9 |
GU31023531 - CACHE CULBUTEUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/9/2/8/8/img/99288.jpg)
10 |
GASKET - FOR CYLINDER HEAD COVER "PIAGGIO GENUINE PART" POUR MOTO-GUZZI 750 BREVA, NEVADA, V-7 -887002- More informationQuantity required : 2 |
||||||
|
11 |
|
||||||
|
12 |
GU31021900 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/7/5/3/img/132753.jpg)
13 |
GU95129180 - RONDELLE 10,5X18X0,8 More informationQuantity required : 4 |
||||||
|
14 |
|
||||||
|
15 |
|
||||||
|
16 |
GU98622325 - VIS M6X25 More informationQuantity required : 12 |
||||||
|
17 |
|
||||||
|
18 |
GU19021320 - BAGUE More informationQuantity required : 2 |
||||||
|
19 |
GU27022080 - JOINT More informationQuantity required : 2 |
||||||
|
20 |
GU96500102 - TIGE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
21 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/8/img/132578.jpg)
22 |
GU93180245 - BOUCHON More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/5/img/131925.jpg)
23 |
GU61027200 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
24 |
886670 - GUARNIZIONE TRA CILINDRO E BASAMENTO More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/2/0/9/img/132209.jpg)
25 |
GU90706076 - JOINT TORIQUE More informationQuantity required : 2 |
