Vehicle Exploded View - MOTO-GUZZI NTX 350 1987-1990
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

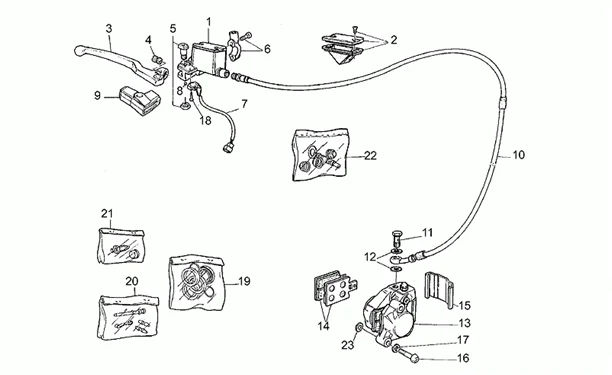

Chassis : 33.16 MAÎT. CYL. FREIN AV
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/509/NTX_350_1987-1990_33.16.PNG)
1 |
GU27660115 - POMPE FREIN More informationQuantity required : 1 |
||||||
|
2 |
GU27661115 - COUVERCLE POMPE More informationQuantity required : 1 |
||||||
|
3 |
Levier frein avant |
||||||
|
4 |
|
||||||
|
5 |
GU27604815 - PIVOT More informationQuantity required : 1 |
||||||
|
6 |
AP8113203 - CAVALIER LEVIER FREIN More informationQuantity required : 1 |
||||||
|
7 |
Interrupteur stop |
||||||
|
8 |
GU92295708 - BILLE More informationQuantity required : 1 |
||||||
|
9 |
GU27663615 - CAPUCHON More informationQuantity required : 1 |
||||||
|
10 |
GU27658575 - TUYAU FREIN AV. More informationQuantity required : 1 |
||||||
|
11 |
GU95990028 - VIS TUYAU HUILE * More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/9/img/129949.jpg)
12 |
GU25656100 - GARNITURE More informationQuantity required : 2 |
||||||
|
13 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/0/5/4/img/130054.jpg)
14 |
REAR BRAKE PADS - "PIAGGIO GENUINE PART" MOTO-GUZZI V50, V65, V10, V11, STRADA, NEVADA, DAYTONA -GU27654610- More informationQuantity required : 1 |
||||||
|
15 |
GU30654700 - COUVERCLE PINCE FREIN More informationQuantity required : 1 |
||||||
|
16 |
GU98612425 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
17 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 2 |
||||||
|
18 |
|
||||||
|
19 |
KIT OUTILS |
||||||
|
20 |
GU30659101 - GOUJON+RESSORT PINCE More informationQuantity required : 1 |
||||||
|
21 |
AP8113549 - PURGE AIR More informationQuantity required : 1 |
||||||
|
22 |
|
||||||
|
23 |
GU95100250 - RONDELLE 8,5X18X0,5 More informationQuantity required : 1 |
||||||
|
23 |
GU95100251 - RONDELLE 8,5X18X0,8 More informationQuantity required : 1 |
