Vehicle Exploded View - MOTO-GUZZI NTX 350 1987-1990
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

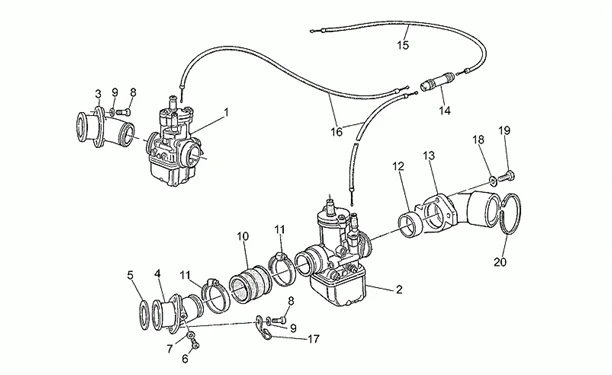

Chassis : 33.23 ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/509/NTX_350_1987-1990_33.23.PNG)
3 |
GU31115000 - PIPE ADMISSION More informationQuantity required : 1 |
||||||
|
4 |
GU31115001 - PIPE ADMISSION More informationQuantity required : 1 |
||||||
|
5 |
GU19115520 - JOINT More informationQuantity required : 2 |
||||||
|
6 |
GU98310610 - VIS More informationQuantity required : 2 |
||||||
|
7 |
GU95100116 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
9 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 4 |
||||||
|
10 |
GU19114320 - MANCHON More informationQuantity required : 2 |
||||||
|
11 |
GU93305032 - COLLIER 32X52X8 More informationQuantity required : 4 |
||||||
|
13 |
GU19114480 - COLLECTEUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/0/8/6/5/img/130865.jpg)
14 |
GU30607910 - DEDOUBLEREUR More informationQuantity required : 1 |
||||||
|
15 |
GU27132815 - CABLE DE STARTER More informationQuantity required : 2 |
||||||
|
16 |
GU27133515 - CABLE DE STARTER More informationQuantity required : 1 |
||||||
|
17 |
GU19718000 - COLLIER More informationQuantity required : 1 |
||||||
|
18 |
GU95000205 - RONDELLE More informationQuantity required : 4 |
||||||
|
19 |
GU98054220 - VIS More informationQuantity required : 4 |
||||||
|
20 |
GU14609650 - COLLIER 3,6X20,6 More informationQuantity required : 2 |
