Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada Club 750 1998-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

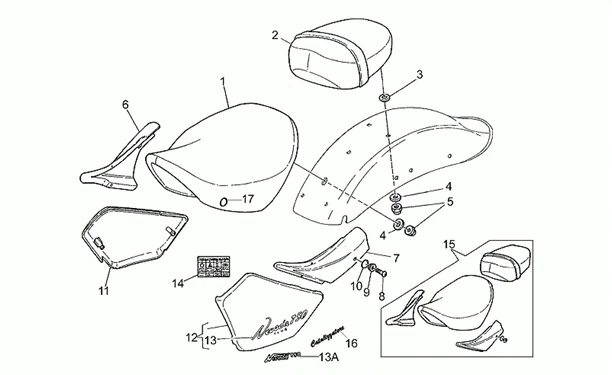

Chassis : 33.25 SELLES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/504/Nevada_Club_750_1998-2001_33.25.PNG)
1 |
Selle pilote |
||||||
|
1 |
Selle |
||||||
|
2 |
GU31464081 - SIEGE More informationQuantity required : 1 |
||||||
|
3 |
GU93110082 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
4 |
GU95100141 - RONDELLE 6,5X20X2 More informationQuantity required : 4 |
||||||
|
5 |
GU92630206 - ECROU M6X1 More informationQuantity required : 4 |
||||||
|
6 |
GU31469081 - CLOISON AV More informationQuantity required : 1 |
||||||
|
7 |
CLOISON AV |
||||||
|
8 |
GU98230826 - VIS More informationQuantity required : 2 |
||||||
|
9 |
GU31469281 - ENTRETOISE More informationQuantity required : 2 |
||||||
|
10 |
GU90706092 - JOINT TORIQUE More informationQuantity required : 2 |
||||||
|
11 |
GU234762101 - COUVERCLE BATTERIE More informationQuantity required : 1 |
||||||
|
11 |
COUVERCLE BATTERIE |
||||||
|
11 |
Recouvrement d.blanc |
||||||
|
11 |
Recouvrement D.rouge race |
||||||
|
11 |
Recouvrement D.bleu |
||||||
|
12 |
GU234763101 - COUVERCLE BATTERIE More informationQuantity required : 1 |
||||||
|
12 |
COUVERCLE BATTERIE |
||||||
|
12 |
Recouvrement g.noir |
||||||
|
12 |
Recouvrement g.blanc |
||||||
|
12 |
Recouvrement G.rouge race |
||||||
|
12 |
Recouvrement G.bleu |
||||||
|
12 |
Recouvrement g.noir |
||||||
|
13 |
GU31922069 - DEC.NEVADA BASE ARGENT/NOIRE More informationQuantity required : 2 |
||||||
|
13 |
GU31922070 - DECALCO NEVADA CLUB SILV/BLA More informationQuantity required : 2 |
||||||
|
13 |
GU31922067 - DECALCOMANIE D More informationQuantity required : 2 |
||||||
|
13 |
GU31922068 - DECALCOMANIE D More informationQuantity required : 2 |
||||||
|
14 |
GU31945467 - DECALCOMANIE D More informationQuantity required : 1 |
||||||
|
15 |
GU31460581 - KIT More informationQuantity required : 1 |
||||||
|
16 |
GU14922071 - DECALCOMANIE D More informationQuantity required : 2 |
||||||
|
17 |
GU00979719 - BOTTONE PER SELLA More informationQuantity required : 7 |
