Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada Club 750 1998-2001
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

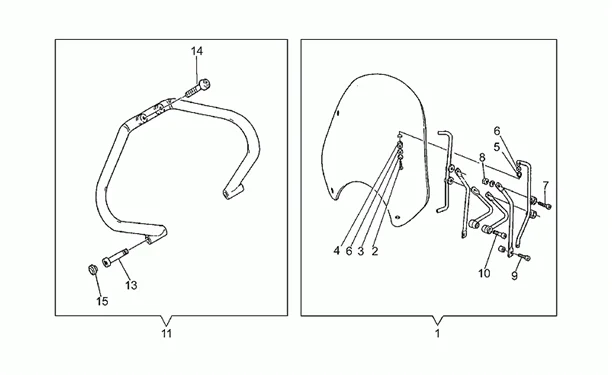

Chassis : 33.01 ACCESSOIRES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/504/Nevada_Club_750_1998-2001_33.01.PNG)
1 |
Pare-brise cpl. |
||||||
|
2 |
GU98270620 - VIS More informationQuantity required : 4 |
||||||
|
3 |
GU03530543 - ROSETTA SAGOMATA More informationQuantity required : 4 |
||||||
|
4 |
GU03530546 - SILENT BLOCK More informationQuantity required : 4 |
||||||
|
5 |
Entretoise |
||||||
|
6 |
Rondelle |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
7 |
GU98682420 - VIS TCEI M8X20 More informationQuantity required : 2 |
||||||
|
8 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 4 |
||||||
|
9 |
|
||||||
|
10 |
GU98620545 - VIS More informationQuantity required : 2 |
||||||
|
11 |
PARE-CHOCS |
||||||
|
13 |
GU98620540 - VIS M10X40 More informationQuantity required : 2 |
||||||
|
14 |
GU98682420 - VIS TCEI M8X20 More informationQuantity required : 2 |
||||||
|
15 |
GU93180216 - CAOUTCHOUC More informationQuantity required : 2 |
