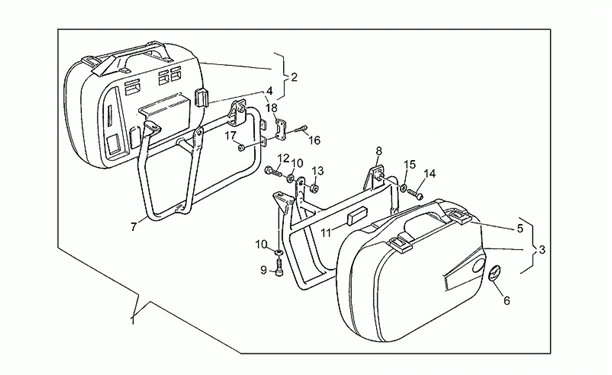

Chassis : 33.04 SIDE CASES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/504/Nevada_Club_750_1998-2001_33.04.PNG)
1 |
KIT |
||||||
|
2 |
GU31482565 - RH SUITCASE 30 L More informationQuantity required : 1 |
||||||
|
3 |
LH suitcase |
||||||
|
4 |
GU03484000 - SERRATURA More informationQuantity required : 2 |
||||||
|
5 |
GU03484001 - SERRATURA More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/2/8/0/5/img/102805.jpg)
6 |
DECAL- "MOTO-GUZZI" FOR LUGGAGE "PIAGGIO GENUINE PART" MOTO-GUZZI 1100 CALIFORNIA, 750 NEVADA -GU03482000 More informationQuantity required : 2 |
||||||
|
7 |
GU31485066 - SUPPORT More informationQuantity required : 1 |
||||||
|
8 |
GU31486566 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
9 |
GU98682420 - VIS TCEI M8X20 More informationQuantity required : 2 |
||||||
|
10 |
GU95000208 - RONDELLE More informationQuantity required : 4 |
||||||
|
11 |
|
||||||
|
12 |
GU98054422 - VIS More informationQuantity required : 2 |
||||||
|
13 |
GU92602208 - ECROU M8X1,25 More informationQuantity required : 2 |
||||||
|
14 |
GU98231045 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/0/6/2/img/110062.jpg)
15 |
0030404 - RONDELLE S00304000 More informationQuantity required : 2 |
||||||
|
16 |
GU98230619 - VIS More informationQuantity required : 4 |
||||||
|
17 |
GU92630106 - ECROU M6X1 More informationQuantity required : 4 |
||||||
|
18 |
GU00979726 - PIASTRINA FERMO More informationQuantity required : 2 |
