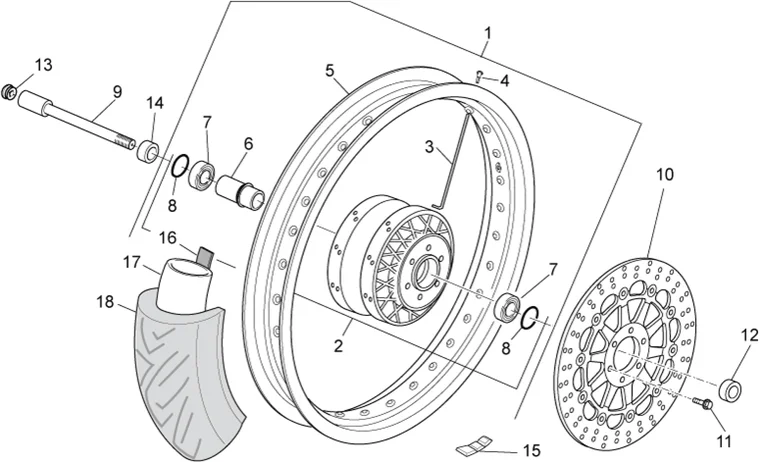

Chassis : 33.24 ROUE AV. I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/501/Nevada_Classic_750_2012-2013_33.24.PNG)
1 |
GU32610360 - "ROUE AV NUE 2,15X18""" More informationQuantity required : 1 |
||||||
|
2 |
GU32613160 - MOYEU AVANT More informationQuantity required : 1 |
||||||
|
3 |
GU32611660 - RAYON More informationQuantity required : 36 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/1/7/img/128217.jpg)
4 |
GU03631250 - NIPPLES More informationQuantity required : 36 |
||||||
|
5 |
GU32610860 - "JANTE AVANT 2,50X18""" More informationQuantity required : 1 |
||||||
|
6 |
GU31615260 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
7 |
GU92204221 - ROULEMENT More informationQuantity required : 2 |
||||||
|
8 |
GU90402642 - BAGUE D'ETANCHEITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/2/1/5/img/131215.jpg)
9 |
FRONT WHEEL AXLE "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7 2008>, NEVADA 2002>2013 -GU31614183- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/8/7/8/1/img/98781.jpg)
10 |
FRONT BRAKE DISC "PIAGGIO GENUINE PART" MOTO-GUZZI V7, V9, NEVADA, GRISO, BELLAGIO -883688- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
11 |
SCREW - (8X20) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -AP8152286- More informationQuantity required : 6 |
||||||
|
12 |
GU31616384 - ENTRETOISE G More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/7/2/img/132572.jpg)
13 |
GU93180111 - BOUCHON 15 MM More informationQuantity required : 1 |
||||||
|
14 |
GU32615660 - ENTRETOISE D More informationQuantity required : 1 |
||||||
|
15 |
GU14616150 - CONTREPOIDS More informationQuantity required : 1 |
