Vehicle Exploded View - MOTO-GUZZI NEVADA 750 Nevada Classic 750 2012-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

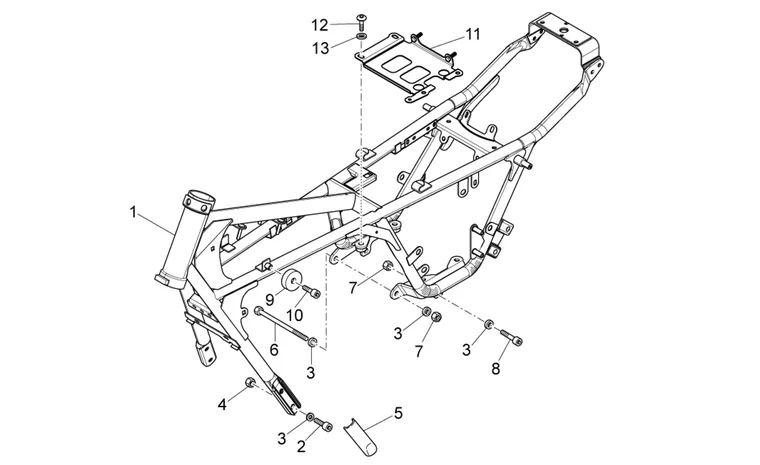

Chassis : 33.01 CHASSIS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/501/Nevada_Classic_750_2012-2013_33.01.PNG)
1 |
B063243 - (*)TELAIO CON PI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
2 |
AP8150195 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/2/img/132682.jpg)
3 |
GU95008210 - RONDELLE 10,2X18X2 More informationQuantity required : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/1/0/img/132510.JPG)
4 |
GU92630510 - ECROU M10X1,5 More informationQuantity required : 4 |
||||||
|
5 |
GU32457810 - PROTECTION More informationQuantity required : 2 |
||||||
|
6 |
GU98110199 - PIVOT M10X205 More informationQuantity required : 1 |
||||||
|
7 |
GU92603010 - ECROU M10X1,5 More informationQuantity required : 3 |
||||||
|
8 |
GU98680555 - VIS M10X55 More informationQuantity required : 2 |
||||||
|
9 |
AP8201124 - CAOUTCHOUC More informationQuantity required : 2 |
||||||
|
10 |
GU98682414 - VIS M8X14 More informationQuantity required : 2 |
||||||
|
11 |
B063287 - PIASTRA UNIONE TELAIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
12 |
GU98682420 - VIS TCEI M8X20 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/5/5/4/img/73554.JPG)
13 |
GU95008208 - RONDELLE 8,4X15X1,8 More informationQuantity required : 4 |
