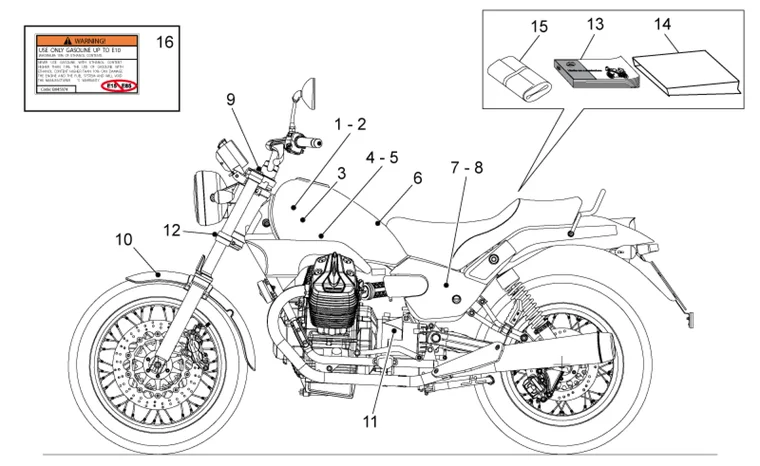

Chassis : 33.33 DÉCALCO ET PLAQUETTES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/501/Nevada_Classic_750_2012-2013_33.33.PNG)
1 |
886136 - DECALCO AQUILA NERA DX SERBATOIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/1/7/8/img/100178.jpg)
1 |
DECAL- ON FUEL TANK- "MOTO-GUZZI" RIGHT "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, 1100 CALIFORNIA VINTAGE -977336- More informationQuantity required : 1 |
||||||
|
2 |
886137 - DECALCO AQUILA NERA SX SERBATOIO More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/0/1/7/9/img/100179.jpg)
2 |
DECAL- ON FUEL TANK "MOTO-GUZZI" LEFT "PIAGGIO GENUINE PART" MOTO-GUZZI 750 NEVADA, 1100 CALIFORNIA VINTAGE -977337- More informationQuantity required : 1 |
||||||
|
3 |
886138 - DECALCO "MOTO GUZZI" SERBATOIO More informationQuantity required : 2 |
||||||
|
4 |
B063185 - (*)DECALCO FILETTO DX SERBATOIO BENZ. More informationQuantity required : 1 |
||||||
|
5 |
B063186 - (*)DECALCO FILETTO SX SERBATOIO BENZ. More informationQuantity required : 1 |
||||||
|
6 |
GU30944300 - "DECALCO ""ATTENTION""" More informationQuantity required : 1 |
||||||
|
7 |
B063187 - (*)DECALCO "NEVADA 750" DX COPRIACCUMULA More informationQuantity required : 1 |
||||||
|
7 |
886139 - DECALCO "NEVADA" CROMATA DX FIANCHETTO More informationQuantity required : 1 |
||||||
|
8 |
886140 - DECALCO "NEVADA" CROMATA SX FIANCHETTO More informationQuantity required : 1 |
||||||
|
8 |
B063188 - (*)DECALCO "NEVADA 750" SX COPRIACCUMULA More informationQuantity required : 1 |
||||||
|
9 |
883598 - TARGHETTA OVALE MOTOGUZZI More informationQuantity required : 1 |
||||||
|
10 |
886141 - DECALCO OVALE MOTO GUZZI AQUILA NERA More informationQuantity required : 1 |
||||||
|
11 |
895839 - DECALCO More informationQuantity required : 2 |
||||||
|
12 |
GU01517700 - "DECALCO ""AQUILIA""" More informationQuantity required : 1 |
||||||
|
14 |
GU05900130 - SACHET POUR DOCUMENTS More informationQuantity required : 2 |
||||||
|
15 |
887443 - TROUSSE ATTREZZI More informationQuantity required : 1 |
||||||
|
16 |
B045974 - DECALCO More informationQuantity required : 1 |
