Vehicle Exploded View - MOTO-GUZZI NEVADA 750 1993-1997
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

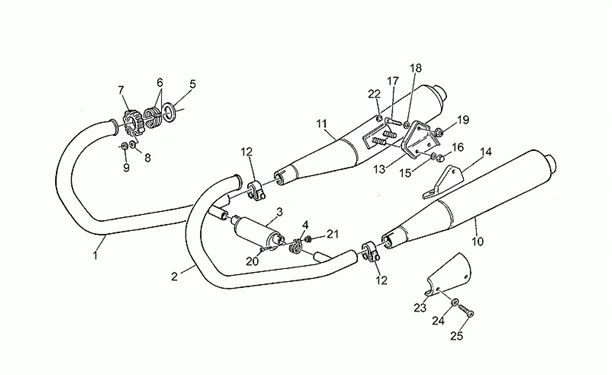

Chassis : 33.40 GROUPE ECHAPPEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/499/Nevada_750_1993-1997_33.40.PNG)
1 |
TUYAU D ECHAPPEMENT |
||||||
|
1 |
GU31120762 - TUYAU D ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
2 |
GU31120761 - TUYAU D ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
2 |
GU31120763 - TUYAU D ECHAPPEMENT More informationQuantity required : 1 |
||||||
|
3 |
GU31123960 - CHAMBRE DE DETENDE More informationQuantity required : 1 |
||||||
|
4 |
GU31126960 - COLLIER More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/4/6/3/img/129463.jpg)
5 |
CYLINDER HEAD OUTLET GASKET "PIAGGIO GENUINE PART" MOTO-GUZZI 750 BREVA, V7, NEVADA, STRADA, TARGA, V50, V65 -GU19025280- More informationQuantity required : 2 |
||||||
|
6 |
GU19025460 - ENTRETOISE More informationQuantity required : 4 |
||||||
|
7 |
GU19121050 - FLASQUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
8 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 4 |
||||||
|
9 |
GU92701062 - ECROU More informationQuantity required : 4 |
||||||
|
10 |
SILENCIEUX |
||||||
|
10 |
SILENCIEUX |
||||||
|
11 |
GU31122960 - SILENCIEUX More informationQuantity required : 1 |
||||||
|
11 |
SILENCIEUX |
||||||
|
12 |
GU30123430 - COLLIER More informationQuantity required : 2 |
||||||
|
12 |
GU31123460 - COLLIER More informationQuantity required : 2 |
||||||
|
13 |
PLAQUE |
||||||
|
14 |
GU31128760 - PLAQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/3/2/img/131932.jpg)
15 |
GU61270300 - RONDELLE ELASTIQUE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/6/1/img/132561.jpg)
16 |
GU92781081 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/8/7/img/133187.jpg)
17 |
GU98682420 - VIS TCEI M8X20 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/4/8/img/73448.jpg)
18 |
WASHER (8,4X13X0,8) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MOTO-GUZZI -GU14615901- More informationQuantity required : 2 |
||||||
|
19 |
GU92660008 - ECROU More informationQuantity required : 2 |
||||||
|
20 |
GU98692325 - VIS TCEI M6X25 More informationQuantity required : 2 |
||||||
|
21 |
GU61127220 - BAGUE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/9/4/7/img/129947.jpg)
22 |
STEERING COLUMN CAP "PIAGGIO GENUINE PART" MOTO GUZZI BELLAGIO 940 2007>2013, BREVA 750 2003>2009, CALIFORNIA 1994>2012, NEVADA 1992>2013 -GU23943410 More informationQuantity required : 2 |
||||||
|
23 |
GU31121962 - COUVERCLE DE PROTEC More informationQuantity required : 2 |
||||||
|
24 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 4 |
||||||
|
25 |
GU98230606 - VIS More informationQuantity required : 4 |
