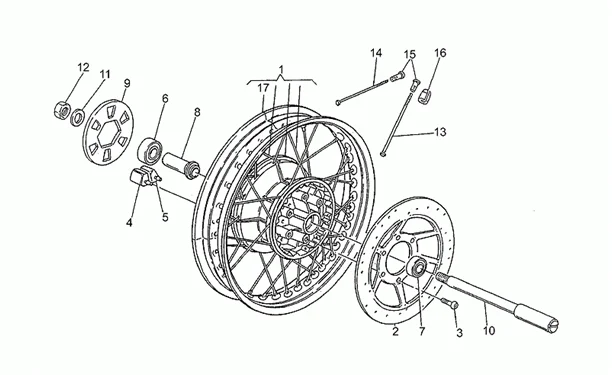

Chassis : 33.27 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/499/Nevada_750_1993-1997_33.27.PNG)
2 |
GU31613380 - DISQUE FREIN More informationQuantity required : 1 |
||||||
|
3 |
GU98622425 - VIS M8X25 More informationQuantity required : 6 |
||||||
|
4 |
GU19632501 - C/C AMMORT TRANS More informationQuantity required : 6 |
||||||
|
5 |
GU19632502 - JOINT EN CAOUTCHOUC G. More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/1/img/132401.jpg)
6 |
WHEEL BEARING "PIAGGIO GENUINE PART" MOTO-GUZZI V50, V65, 750 V7, DAYTONA, NEVADA, BREVA, 1100 SPORT -GU92204218- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/4/0/0/img/132400.jpg)
7 |
REAR WHEEL BEARING "PIAGGIO GENUINE PART" MOTO-GUZZI 750 V7, NEVADA, BREVA, V35, V60, V65 -GU92204217- More informationQuantity required : 1 |
||||||
|
8 |
GU27633910 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
9 |
GU27356910 - ENTRETOISE More informationQuantity required : 1 |
||||||
|
11 |
GU14634400 - RONDELLE More informationQuantity required : 1 |
||||||
|
12 |
GU92602316 - ECROU M6X1,5 More informationQuantity required : 1 |
||||||
|
13 |
GU23631470 - RAYON AVEC NIPLE More informationQuantity required : 18 |
||||||
|
14 |
GU23631170 - RAYON AVEC NIPLE More informationQuantity required : 18 |
||||||
|
15 |
GU27631250 - NIPLE More informationQuantity required : 36 |
||||||
|
16 |
GU12616101 - CONTREPOIDS 15 GR. More informationQuantity required : 1 |
||||||
|
16 |
GU12616102 - CONTREPOIDS 20 GR. More informationQuantity required : 1 |
||||||
|
16 |
GU12616103 - CONTREPOIDS 30 GR. More informationQuantity required : 1 |
||||||
|
17 |
GU23630770 - JANTE ROUE More informationQuantity required : 1 |
