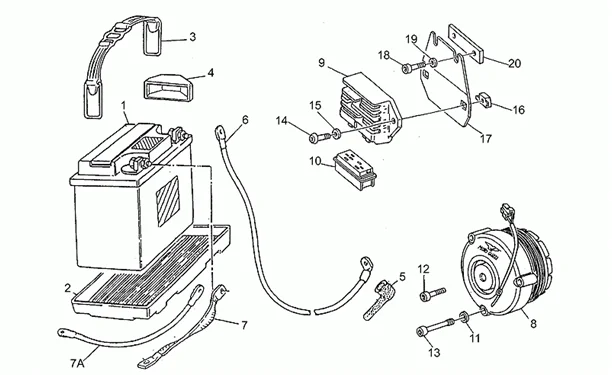

Chassis : 33.02 BATTERIE-ALTERN. SAPRISA
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/499/Nevada_750_1993-1997_33.02.PNG)
2 |
GU28707050 - BOITIER BATTERIE More informationQuantity required : 1 |
||||||
|
3 |
GU19704800 - ETRIER COLLIER BATT. More informationQuantity required : 1 |
||||||
|
4 |
GU31705360 - COIN BATTERIE More informationQuantity required : 1 |
||||||
|
5 |
GU19707100 - CAPUCHON More informationQuantity required : 2 |
||||||
|
6 |
GU19748000 - CABLE BATTERIE More informationQuantity required : 1 |
||||||
|
7 |
GU19748400 - CABLE BATTERIE More informationQuantity required : 1 |
||||||
|
7 |
GU28747960 - FILS DE MASSE More informationQuantity required : 1 |
||||||
|
10 |
GU28712500 - CONNECTEUR More informationQuantity required : 1 |
||||||
|
11 |
GU95021105 - RONDELLE EVENT. More informationQuantity required : 3 |
||||||
|
13 |
GU28712459 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/7/9/img/133179.jpg)
14 |
GU98682316 - VIS M6X16 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/2/4/img/131924.jpg)
15 |
GU61013800 - RONDELLE SPECIALE More informationQuantity required : 2 |
||||||
|
16 |
GU92660601 - ECROU EN CAGE More informationQuantity required : 2 |
||||||
|
17 |
GU29704060 - PLAQUE SUPPORT More informationQuantity required : 1 |
||||||
|
18 |
GU98622416 - VIS More informationQuantity required : 2 |
||||||
|
19 |
GU95000208 - RONDELLE More informationQuantity required : 2 |
||||||
|
20 |
GU17451750 - PLAQUETTE More informationQuantity required : 1 |
