Vehicle Exploded View - APRILIA MOJITO 125 2003-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

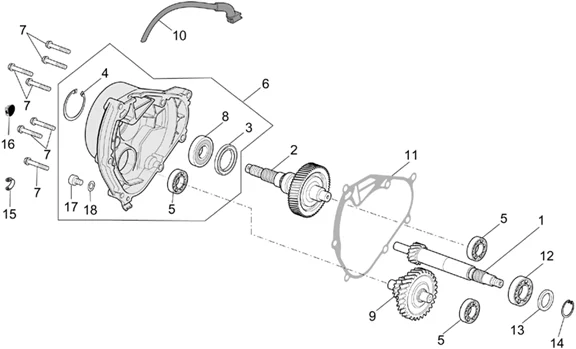

Moteur : 29.53 REDUCTION FINALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/257/Mojito_125_2003-2007_29.53.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/0/5/img/70505.jpg)
1 |
FAN PULLEY SHAFT "PIAGGIO GENUINE PART" 125 LIBERTY, MP3, FLY, TYPHOON, VESPA GTS, VESPA LX, VESPA-S, X8, X9, X-EVO/GILERA 125 NEXUS, RUNNER/APRILIA 125 MOJITO, SR-MOTARD -8738745- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/4/4/img/139444.jpg)
2 |
REAR IMPELLER SHAFT "PIAGGIO GENUINE PART" 125 LIBERTY, VESPA-S, VESPA LX/APRILIA 125 MOJITO -B0161805- More informationQuantity required : 1 |
||||||
2 |
B016770 - AXE ROUE ARR. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/6/img/63826.jpg)
4 |
006652 - CIRCLIP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/9/img/68899.jpg)
5 |
BEARING (15.42.13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -83018R- More informationQuantity required : 3 |
||||||
|
6 |
8319395 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/3/0/img/72730.jpg)
7 |
SCREW 8X45 FOR CHAIN GUIDE "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX -B016805- More informationQuantity required : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/1/2/img/139412.jpg)
8 |
WHEEL BEARING "PIAGGIO GENUINE PART" GILERA GP 800 FRONT/APRILIA SRV 850 FRONT/PIAGGIO 125 FLY REAR, LIBERTY 125/ VESPA LX, LXV, S 125 (25X52X15) -4789845- More informationQuantity required : 1 |
||||||
|
9 |
4871265 - ARBRE DE RENVOI More informationQuantity required : 1 |
||||||
|
9 |
1A0017735 - ARBRE DE RENVOI More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/4/0/img/68940.jpg)
10 |
830862 - RENIFLARD More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/4/8/img/69548.jpg)
11 |
GASKET FOR TRANSMISSION HOUSING "PIAGGIO GENUINE PART" 125 MP3, FLY, LIBERTY, X8, X9, X-EVO/ GILERA 125 NEXUS, RUNNER/ APRILIA 125 ATLANTIC, SR MOTARD/ VESPA 125 GT, LX, S -847930- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/8/2/img/69082.jpg)
12 |
BEARING FOR TRANSMISSION REDUCER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTEUR -833701- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/5/img/68775.jpg)
13 |
GASKET FOR DRIVING SHAFT "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE MAXISCOOTER 125-250-300 -82878R - More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/9/img/72699.jpg)
14 |
CIRCLIPS (25X26,9X1,2) "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -B015959- More informationQuantity required : 1 |
||||||
|
15 |
827277 - COLLIER More informationQuantity required : 1 |
||||||
|
16 |
487115 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
17 |
269755 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
18 |
DRAIN SCREW GASKET (8,2X12X1) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -485703- More informationQuantity required : 1 |
