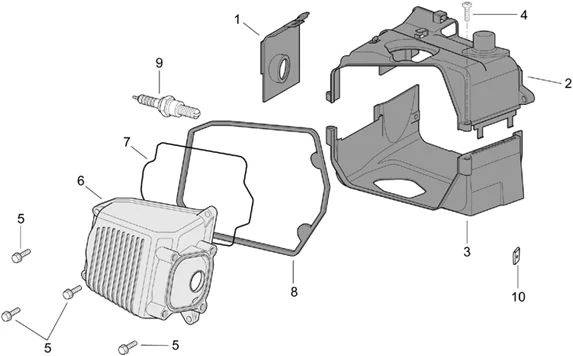

Moteur : 29.46 COUVRE-CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/257/Mojito_125_2003-2007_29.46.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/5/img/68535.jpg)
1 |
825368 - BOUGIE More informationQuantity required : 1 |
||||||
2 |
871762 - COIFFE CYLINDRE More informationQuantity required : 1 |
||||||
|
3 |
871760 - COIFFE CYLINDRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/8/img/66038.jpg)
4 |
259577 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/4/7/img/65447.jpg)
5 |
018639 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/6/2/img/66662.jpg)
6 |
CYLINDER HEAD COVER "PIAGGIO GENUINE PART" 125 LIBERTY, ZIP, SKIPPER, VESPA ET4/APRILIA 125 MOJITO -484573- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/3/4/img/68534.jpg)
8 |
GASKET - FOR CYLINDER HEAD COVER "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125 CC AIR -825364- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/1/5/img/66515.jpg)
9 |
SPARK PLUG CHAMPION RG4HC "PIAGGIO GENUINE PART" COMMON TO THE RANGE -438027- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/2/9/img/66529.jpg)
9 |
SPARK PLUG CHAMPION RG6YC "PIAGGIO GENUINE PART" COMMON TO THE MAXISCOOTER RANGE -438073- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
10 |
248419 - PLAQUETTE PLASTIQUE More informationQuantity required : 2 |
