Vehicle Exploded View - APRILIA MOJITO 125 2003-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

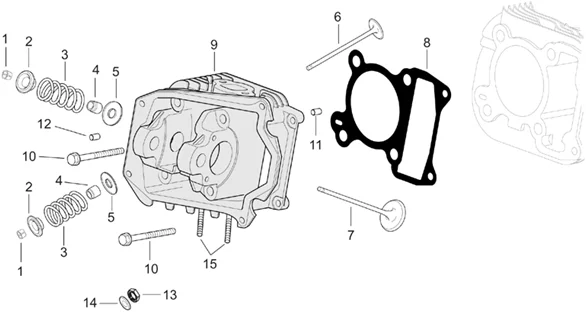

Moteur : 29.44 CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/257/Mojito_125_2003-2007_29.44.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/5/2/img/66152.jpg)
1 |
VALVE HALF CONE "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER + MAXISCOOTER -285846- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/9/img/66649.jpg)
2 |
483914 - RONDELLE D'AR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/0/img/66650.jpg)
3 |
VALVE SPRING "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, VESPA LX, X8 -483915- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/9/3/img/66493.jpg)
4 |
VALVE GASKET RING "PIAGGIO GENUINE PART" 125-250 MP3, X7, X8, X9, X-EVO, X10, VESPA GTS/GILERA 125-250 NEXUS/APRILIA 125-250 ATLANTIC -436438- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/9/img/66639.jpg)
5 |
483711 - RONDELLE D'AR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/7/img/66637.jpg)
6 |
INLET VALVE "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, X8-STREET, VESPA LX, VESPA-S/APRILIA 125 MOJITO, SPORT-CITY -483706- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/3/8/img/66638.jpg)
7 |
EXHAUST VALVE "PIAGGIO GENUINE PART" 125 FLY, LIBERTY, X8-STREET, VESPA LX, VESPA-S/APRILIA 125 MOJITO, SPORT-CITY -483707- More informationQuantity required : 1 |
||||||
8 |
82682R - JOINT More informationQuantity required : 1 |
||||||
|
9 |
82647R - CULASSE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/2/img/66682.JPG)
10 |
485603 - BOULON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
11 |
CENTERING PIN (7,5X12) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -277916- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/7/6/img/66476.jpg)
12 |
435571 - PION DE CENTRAGE N°2 More informationQuantity required : 2 |
||||||
|
13 |
832870 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/5/8/img/66358.jpg)
13 |
411296 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/0/7/img/69107.jpg)
14 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -834187- More informationQuantity required : 4 |
