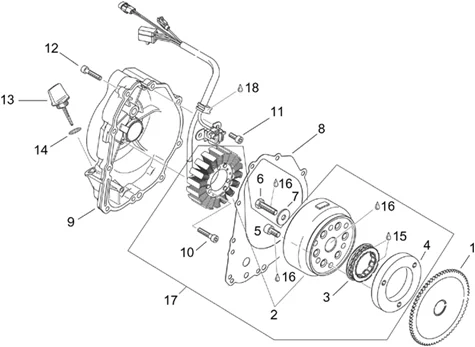

Vehicle Exploded View - APRILIA LEONARDO 125 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)
Moteur : 29.49 ALLUMAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/245/Leonardo_125_1996-1998_29.49.PNG)
1 |
AP0635150 - INGRANAGGIO RUOTA LIBERA More informationQuantity required : 1 |
||||||
|
2 |
AP0295555 - ALLUMAGE+ROUE LIBRE More informationQuantity required : 1 |
||||||
|
3 |
AP0259495 - ROUE LIBRE More informationQuantity required : 1 |
||||||
|
4 |
AP0259480 - FLASQUE ROUE LIBRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/5/7/1/img/142571.jpg)
5 |
2R000308 - VIS More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/9/2/img/44592.jpg)
6 |
AP0940485 - VIS More informationQuantity required : 1 |
||||||
|
7 |
AP0227937 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/4/9/img/44449.jpg)
8 |
GASKET FOR IGNITION HOUSING "PIAGGIO GENUINE PART" APRILIA 125 LEONARDO 1996>2004, 125 SCARABEO 1999>2004 MOTEUR ROTAX -AP0650190- More informationQuantity required : 1 |
||||||
|
9 |
AP0211430 - COUVERCLE D'ALLUMAGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/2/4/img/44524.jpg)
10 |
AP0840880 - VIS More informationQuantity required : 3 |
||||||
|
11 |
AP0241236 - VIS More informationQuantity required : 2 |
||||||
|
12 |
AP0840880 - VIS More informationQuantity required : 9 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/9/6/0/img/43960.jpg)
13 |
OIL LEVEL PLUG "PIAGGIO GENUINE PART" APRILIA 125 LEONARDO, SCARABEO -AP0256461- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/3/5/9/img/44359.jpg)
14 |
AP0630400 - JOINT TORIQUE More informationQuantity required : 1 |
||||||
|
16 |
AP0897651 - LOCTITE BLEUE More informationQuantity required : 1 |
||||||
|
17 |
AP0295555 - ALLUMAGE+ROUE LIBRE More informationQuantity required : 1 |
||||||
|
18 |
AP0297386 - SILASTIC 732 RTV More informationQuantity required : 1 |
