Vehicle Exploded View - APRILIA LEONARDO 125 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

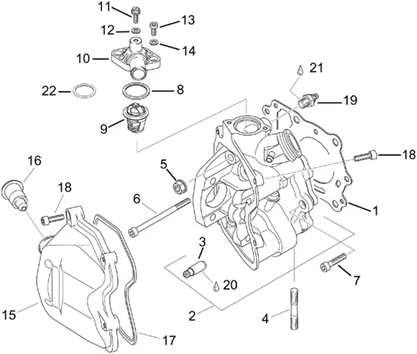

Moteur : 29.48 CULASSE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/245/Leonardo_125_1996-1998_29.48.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/4/5/img/44445.jpg)
1 |
CYLINDER HEAD GASKET- "PIAGGIO GENUINE PART" APRILIA 125 LEONARDO, SCARABEO MOTEUR ROTAX -AP0650170- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/4/6/img/44446.jpg)
1 |
CYLINDER HEAD GASKET- "PIAGGIO GENUINE PART" APRILIA 150 LEONARDO, 150 SCARABEO -AP0650172- More informationQuantity required : 1 |
||||||
2 |
AP0613110 - CULASSE COMPLETE; More informationQuantity required : 1 |
||||||
|
3 |
AP0253811 - GUIDE SOUPAPE More informationQuantity required : 4 |
||||||
|
4 |
AP0240366 - VIS SANS T?TE More informationQuantity required : 2 |
||||||
|
5 |
AP0842616 - ECROU More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/2/4/img/44524.jpg)
7 |
AP0840880 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/5/6/6/img/44566.jpg)
8 |
AP0927837 - DISTANZIALE 20,5/30/1,2 AL More informationQuantity required : 1 |
||||||
|
9 |
AP0222490 - THERMOSTAT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/4/4/7/img/43447.jpg)
10 |
AP0222470 - COUVERCLE THERMOSTAT More informationQuantity required : 1 |
||||||
|
11 |
AP0441621 - VIS More informationQuantity required : 1 |
||||||
|
12 |
AP0650255 - GUARNIZIONE More informationQuantity required : 1 |
||||||
|
13 |
AP0241841 - VIS More informationQuantity required : 2 |
||||||
|
14 |
AP0927571 - RONDELLE More informationQuantity required : 2 |
||||||
|
15 |
AP0211521 - COUVERCLE SOUPAPES; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/9/6/5/img/43965.jpg)
16 |
BREATHER VALVE "PIAGGIO GENUINE PART" APRILIA 125 LEONARDO, 125-250 SCARABEO -AP0256500- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/5/4/img/44454.JPG)
17 |
ROCKER COVER GASKET -AP0650230- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/3/7/4/9/img/43749.jpg)
18 |
AP0241930 - VIS More informationQuantity required : 4 |
||||||
|
19 |
AP0265450 - BULBE DE TEMPERATURE D#EAU More informationQuantity required : 1 |
||||||
|
20 |
AP0297433 - MOLYKOTE More informationQuantity required : 0 |
||||||
|
21 |
AP0899784 - LOCTITE ORANGE More informationQuantity required : 0 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/4/4/6/1/img/44461.jpg)
22 |
THERMOSTAT GASKET "PIAGGIO GENUINE PART" APRILIA 125 LEONARDO, SCARABEO - ROTAX ENGINE -AP0650300- More informationQuantity required : 1 |
