Vehicle Exploded View - APRILIA LEONARDO 125 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

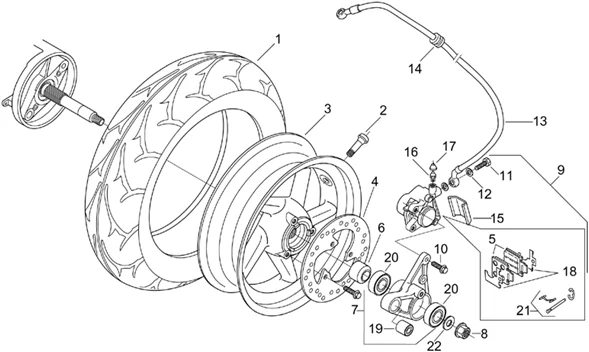

Chassis : 28.33 ROUE ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/245/Leonardo_125_1996-1998_28.33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/6/img/72136.JPG)
2 |
AP8201546 - SOUPAPE TUBELESS; More informationQuantity required : 1 |
||||||
3 |
AP8108706 - ROUE ARRIERE NUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/0/3/img/56403.JPG)
4 |
AP8213231 - DISQUE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/1/5/img/71315.jpg)
5 |
AP8113644 - PLAQUETTES-PAIRE More informationQuantity required : 1 |
||||||
|
5 |
AP8113663 - PLAQUETTES ARRIERE (LA PAIRE) More informationQuantity required : 1 |
||||||
|
6 |
AP8125726 - ENTRETOISE ROUE ARRIERE More informationQuantity required : 1 |
||||||
|
7 |
AP8134308 - PLAQ.FIX PINCES; More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/7/0/9/4/img/97094.jpg)
8 |
AP8152244 - ECROU DAX BRID. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
10 |
AP8152287 - VIS BRIDE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
11 |
AP8113003 - VIS TUYAU HUILE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
12 |
AP8113004 - RONDELLE More informationQuantity required : 4 |
||||||
|
14 |
AP8121856 - GUIDE-CABLE More informationQuantity required : 1 |
||||||
|
15 |
AP8213224 - COUVERCLE PINCE FREIN More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/9/img/72199.jpg)
16 |
SCREW - BRAKE DRAIN SCREW "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER ET MAXISCOOTER APRILIA -AP8213108- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/4/img/71284.jpg)
17 |
AP8113005 - CAPUCHON RENIFLARD More informationQuantity required : 1 |
||||||
|
19 |
AP8120970 - SILENTBLOC More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/0/9/img/68609.jpg)
20 |
CRANKCASE BEARING (20X42X10) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 400-500 CC -82656R- More informationQuantity required : 2 |
||||||
|
21 |
AP8213227 - GOUJON+RESSORT PINCE More informationQuantity required : 1 |
||||||
|
22 |
AP8150471 - RONDELLE ELASTIQUE More informationQuantity required : 1 |
