Vehicle Exploded View - GILERA ICE 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

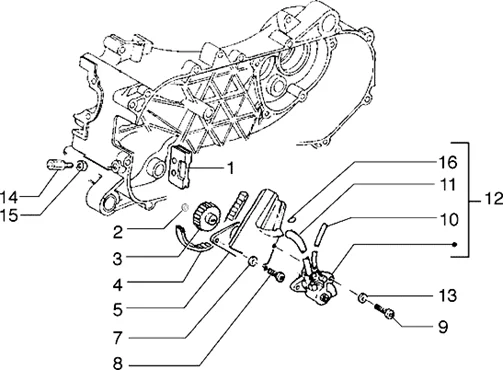

Moteur : T12 POMPE D'HUILE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/666/Ice_1998-2005_T12.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/7/8/img/66178.jpg)
1 |
287021 - PASSE CABLES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/7/9/img/66179.jpg)
2 |
WATER PUMP SHIM WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE 50 CC 2 STROKE 287073- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/1/8/7/img/146187.jpg)
3 |
OIL PUMP GEAR "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, FLY, LIBERTY, ZIP/GILERA 50 STALKER, RUNNER/APRILIA 50 SR/VESPA 50 LX -1A007694- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/1/img/66161.jpg)
4 |
OIL PUMP BELT "PIAGGIO GENUINE PART" 50 ZIP, TYPHOON, LIBERTY, FLY, NRG, VESPA LX/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY -286162- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/2/img/66162.jpg)
5 |
OIL PUMP PLATE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 2 STROKE -286163- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/4/0/img/63840.jpg)
7 |
006975 - RONDELLE S00697500 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/3/img/65383.jpg)
8 |
SCREW - 5X12 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015585- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/9/9/img/65399.jpg)
9 |
SCREW - 5X21 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015856- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/6/3/img/66163.jpg)
10 |
OIL PUMP HOSE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -286165- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/0/4/3/img/73043.jpg)
11 |
OIL HOSE-FROM TANK TO OIL PUMP "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -CM101509- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/0/7/img/68607.jpg)
12 |
OIL PUMP "PIAGGIO GENUINE PART" PIAGGIO 50 ZIP, TYPHOON, LIBERTY, FLY, NRG, VESPA LX/GILERA 50 STALKER, RUNNER/APRILIA 50 SR MOTARD, SPORT-CITY -82652R- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/8/0/img/68580.jpg)
12 |
OIL PUMP "PIAGGIO GENUINE PART" 50 TYPHOON, NRG, ZIP, FLY, LIBERTY 2000> /APRILIA 50 SR H2O 2003>/GILERA 50 STALKER, RUNNER, DNA 2000> -82605R- More informationQuantity required : 1 |
||||||
|
13 |
006975 - RONDELLE S00697500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/5/img/65745.jpg)
14 |
SCREW - FOR OIL PUMP CABLE ADJUSTER "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -146197- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
15 |
020106 - ECROU S02010600 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/5/img/66705.JPG)
16 |
486149 - RESSORT More informationQuantity required : 1 |
